TLE5009A16 - Analog AMR/GMR Angle Sensors

Infineon

📥 Download Datasheet

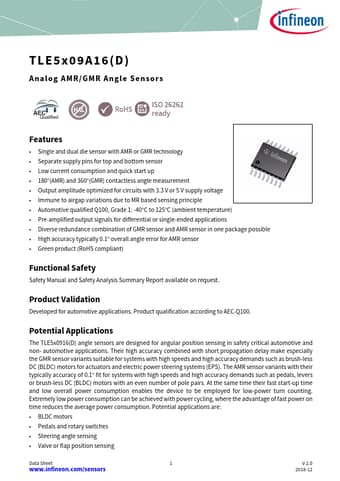

TLE5009A16 Datasheet Preview — Preview of TLE5009A16 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TLE5009A16
Manufacturer: Infineon ↗
File Size: 794.92 KB
Datasheet: TLE5009A16-Infineon.pdf
Description: Analog AMR/GMR Angle Sensors

TLE5009A16 Product details

Description

The TLE5x0916(D) are angle sensor with analog outputs.

Features

Single and dual die sensor with AMR or GMR technology.
Separate supply pins for top and bottom sensor.
Low current consumption and quick start up.
180°(AMR) and 360°(GMR) contactless angle measurement.
Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage.
Immune to airgap variations due to MR based sensing principle.
Automotive qualified Q100, Grade 1: -40°C to 125°C (ambient temperature).
Pre-amplified.
