TLE5109A16, TLE5009A16 - Analog AMR/GMR Angle Sensors

Infineon

📥 Download Datasheet

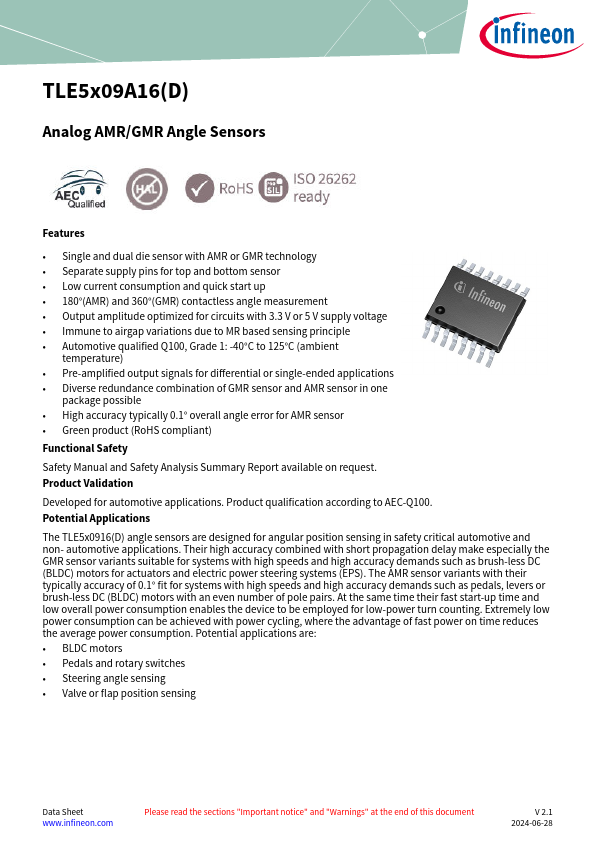

TLE5109A16 Datasheet Preview — This datasheet PDF includes multiple part numbers: TLE5109A16, TLE5009A16. Please refer to the document for exact specifications by model.

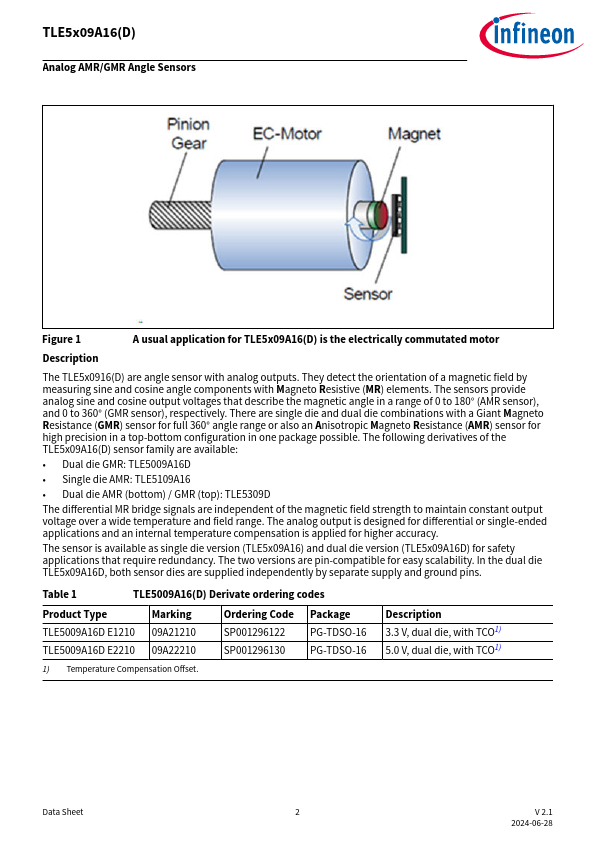

datasheet Preview Page 2

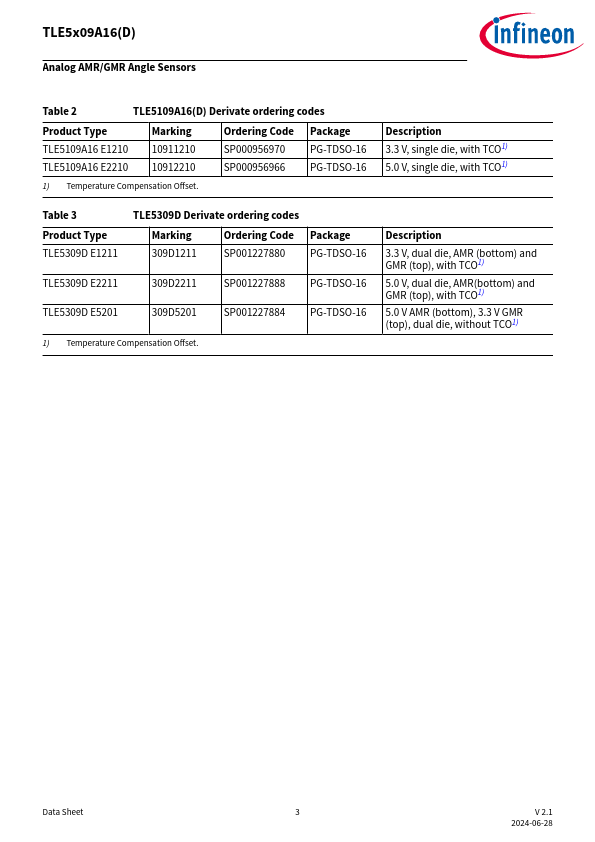

datasheet Preview Page 3

Datasheet Details

Part number	TLE5109A16, TLE5009A16
Manufacturer	Infineon ↗
File Size	794.92 KB
Description	Analog AMR/GMR Angle Sensors
Datasheet	TLE5009A16-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: TLE5109A16, TLE5009A16. Please refer to the document for exact specifications by model.

TLE5109A16 Product details

Description

The TLE5x0916(D) are angle sensor with analog outputs.

Features

Single and dual die sensor with AMR or GMR technology.
Separate supply pins for top and bottom sensor.
Low current consumption and quick start up.
180°(AMR) and 360°(GMR) contactless angle measurement.
Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage.
Immune to airgap variations due to MR based sensing principle.
Automotive qualified Q100, Grade 1: -40°C to 125°C (ambient temperature).
Pre-amplified.
