TLE5501 - TMR-Based Angle Sensor

Infineon

📥 Download Datasheet

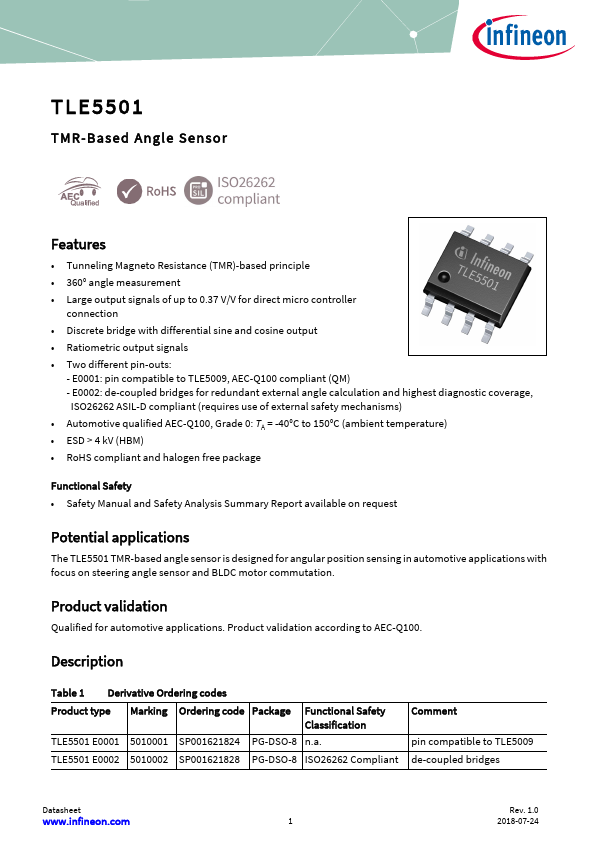

TLE5501 Datasheet Preview — Preview of TLE5501 PDF

Datasheet Details

Part number	TLE5501
Manufacturer	Infineon
File Size	730.19 KB
Description	TMR-Based Angle Sensor
Datasheet	TLE5501-Infineon.pdf

TLE5501 Product details

Description

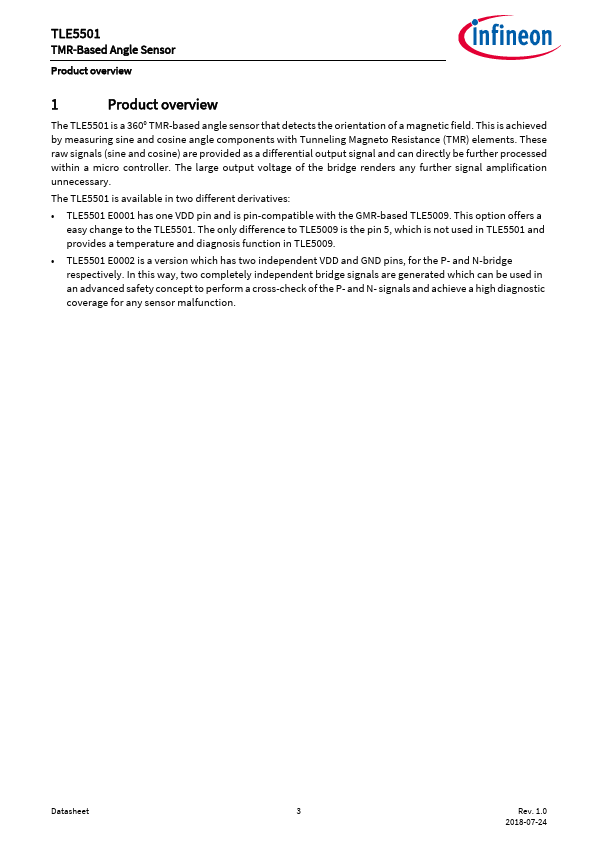

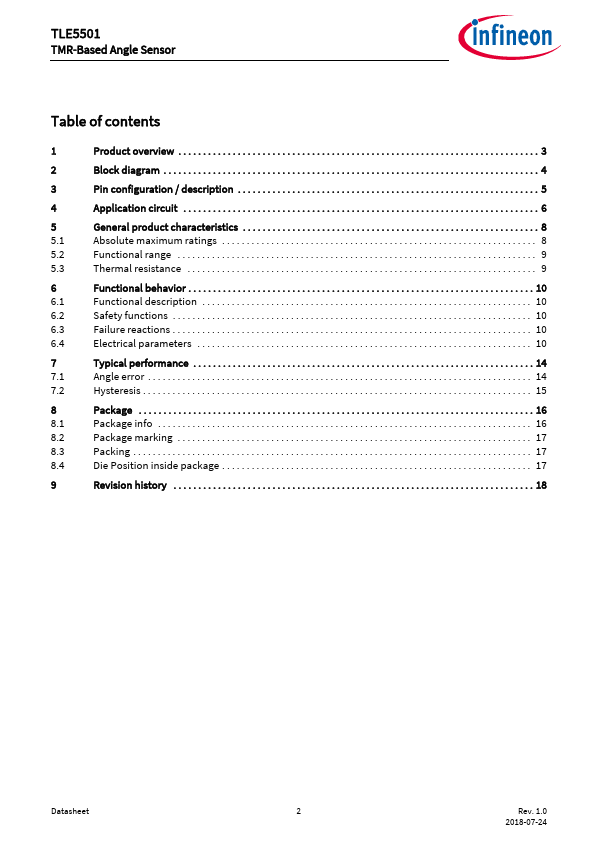

Table 1 Derivative Ordering codes Product type Marking Ordering code Package Functional Safety Classification TLE5501 E0001 5010001 SP001621824 PG-DSO-8 n.a.TLE5501 E0002 5010002 SP001621828 PG-DSO-8 ISO26262 Compliant Comment pin compatible to TLE5009 de-coupled bridges Datasheet www.infineon.com 1 Rev.1.0 2018-07-24 TLE5501 TMR-Based Angle Sensor Table of contents 1 Product overview

Features

Tunneling Magneto Resistance (TMR)-based principle.
360° angle measurement.
Large output signals of up to 0.37 V/V for direct micro controller connection.
Discrete bridge with differential sine and cosine output.
Ratiometric output signals.
Two different pin-outs: - E0001: pin compatible to TLE5009, AEC-Q100 compliant (QM) - E0002: de-coupled bridges for redundant external angle calculation and highest diagnostic coverage, ISO26262 ASIL-D co.
