TLE9104SH Datasheet - Infineon

TLE9104SH - Smart Quad Channel Powertrain Switch

Quad Low-Side Switch in Smart Power Technology (SPT) with four open drain DMOS output stages.

The TLE9104SH is protected by embedded protection functions and designed for automotive powertrain applications.

The output stages can be controlled directly by parallel inputs for PWM applications (for exa

TLE9104SH Features

* Configurable overcurrent protection

* Overtemperature protection

* Open load detection

* Short circuit to GND detection

* Electrostatic Discharge (ESD) protection

* 16-Bit SPI (for diagnostic and control)

* Soldering: Automated Optical Inspec

TLE9104SH-Infineon.pdf

Preview of TLE9104SH PDF

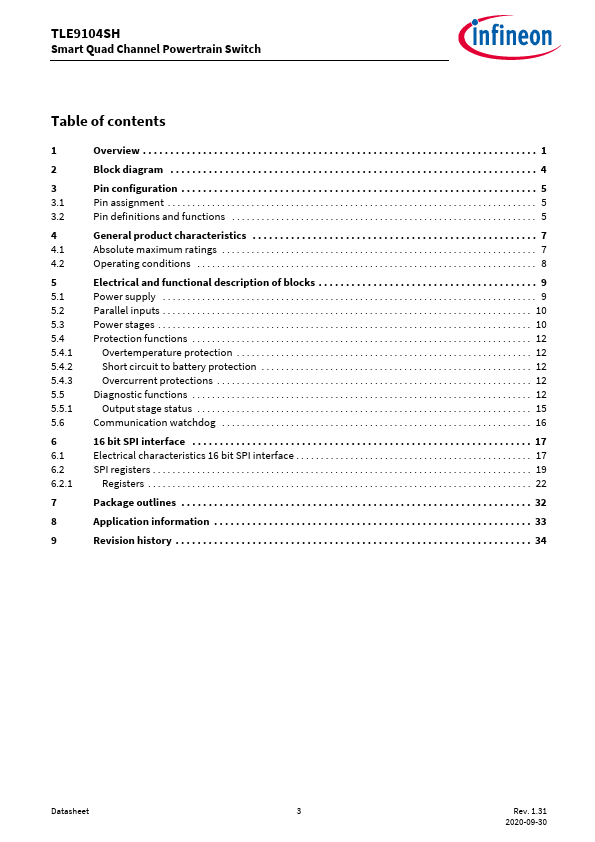

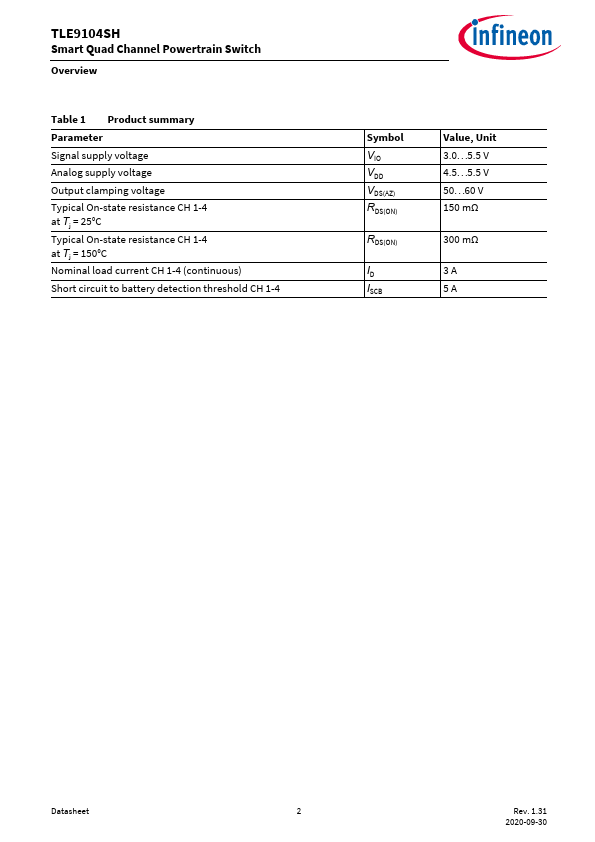

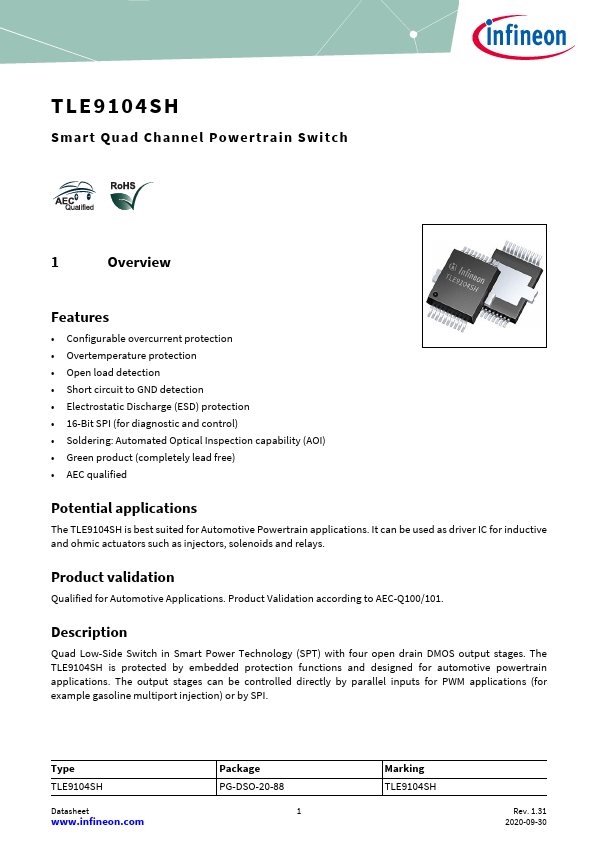

TLE9104SH Datasheet Preview Page 2 TLE9104SH Datasheet Preview Page 3

Datasheet Details

Part number:

TLE9104SH

Manufacturer:

Infineon ↗

File Size:

609.38 KB

Description:

Smart quad channel powertrain switch.
