TLE9166EQ - half-bridges and high-side switches

Infineon

TLE9166EQ Datasheet Preview — Preview of TLE9166EQ PDF

Datasheet Details

Part number	TLE9166EQ
Manufacturer	Infineon ↗
File Size	1.76 MB
Description	half-bridges and high-side switches
Datasheet	TLE9166EQ-Infineon.pdf

TLE9166EQ Product details

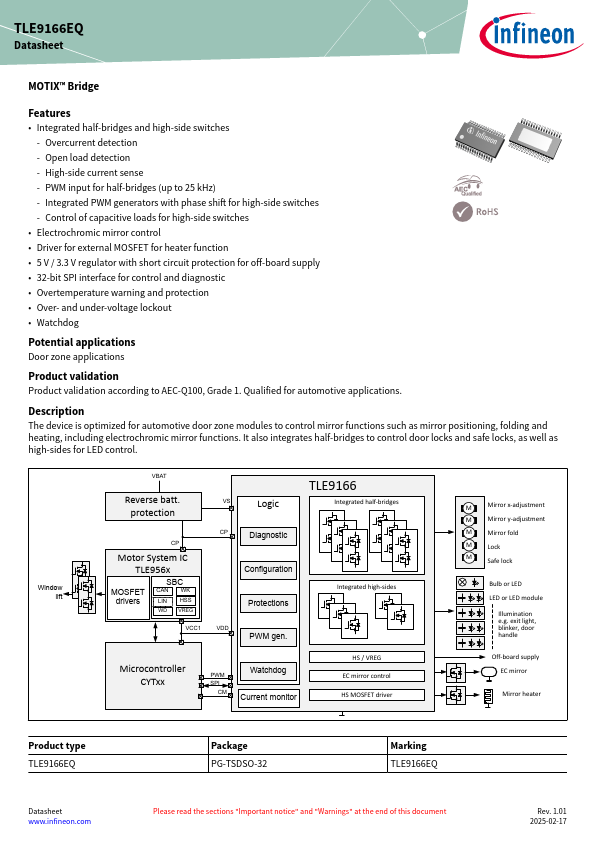

Description

The device is optimized for automotive door zone modules to control mirror functions such as mirror positioning, folding and heating, including electrochromic mirror functions.

Features

Integrated half-bridges and high-side switches - Overcurrent detection - Open load detection - High-side current sense - PWM input for half-bridges (up to 25 kHz) - Integrated PWM generators with phase shift for high-side switches - Control of capacitive loads for high-side switches.
Electrochromic mirror control.
Driver for external MOSFET for heater function.
5 V / 3.3 V regulator with short circuit protection for off-board supply.
32-bit SPI inter.
