TLE9183QK - Bridge Driver

Infineon

TLE9183QK Datasheet Preview — Preview of TLE9183QK PDF

Datasheet Details

Part number	TLE9183QK
Manufacturer	Infineon ↗
File Size	2.03 MB
Description	Bridge Driver
Datasheet	TLE9183QK-Infineon.pdf

TLE9183QK Product details

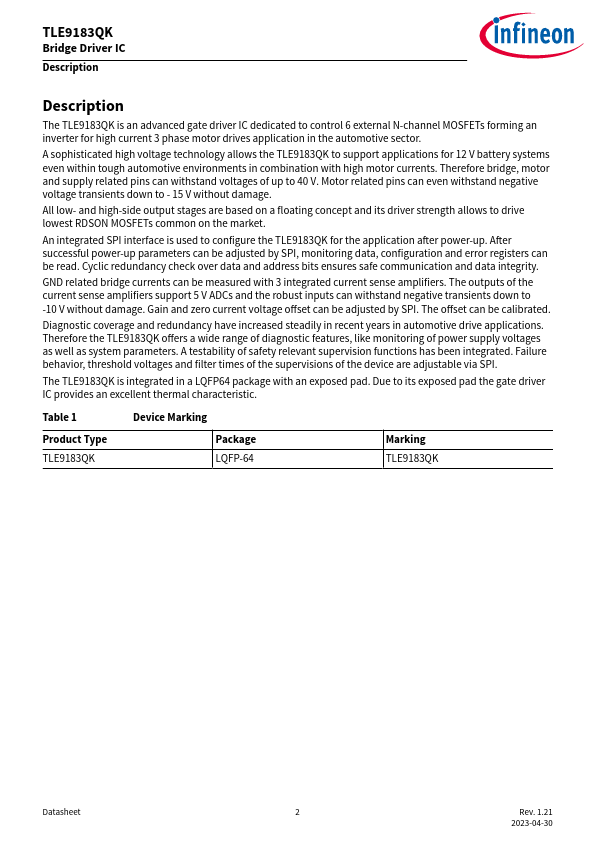

Description

Description The TLE9183QK is an advanced gate driver IC dedicated to control 6 external N-channel MOSFETs forming an inverter for high current 3 phase motor drives application in the automotive sector.A sophisticated high voltage technology allows the TLE9183QK to support applications for 12 V battery systems even within tough automotive environments in combination with high motor currents.Therefore bridge, motor and supply related pins can withstand voltages of up to 40 V.Motor related pins

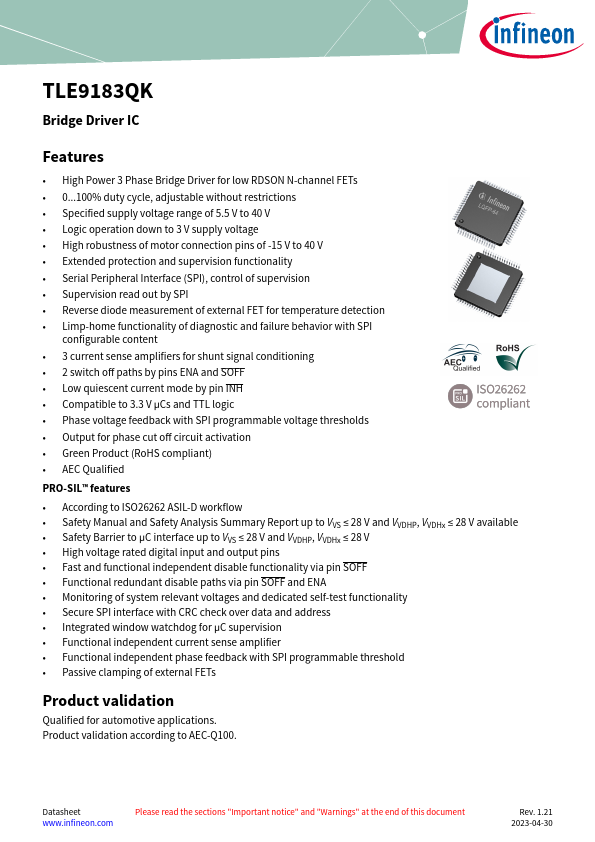

Features

High Power 3 Phase Bridge Driver for low RDSON N-channel FETs.
0100% duty cycle, adjustable without restrictions.
Specified supply voltage range of 5.5 V to 40 V.
Logic operation down to 3 V supply voltage.
High robustness of motor connection pins of -15 V to 40 V.
Extended protection and supervision functionality.
Serial Peripheral Interface (SPI), control of supervision.
Supervision read out by SPI.
Reverse diode.
