TLE9461ES Datasheet, Sbc, Infineon

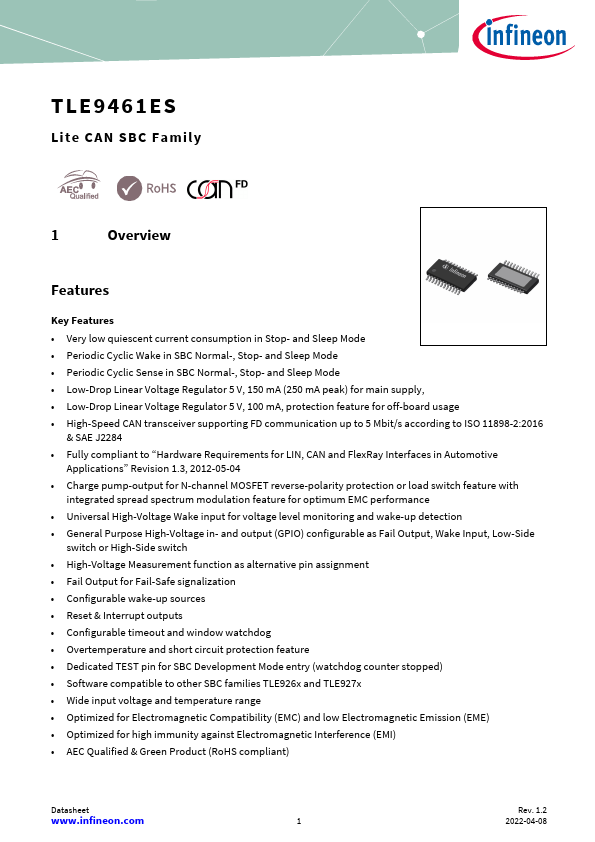

TLE9461ES Features

• Sbc Key Features
• Very low quiescent current consumption in Stop- and Sleep Mode
• Periodic Cyclic Wake in SBC Normal-, Stop- and Sleep Mode
• Periodic Cyclic Sense

PDF File Details

Part number:

TLE9461ES

Manufacturer:

Infineon ↗

File Size:

4.05MB

Download:

📄 Datasheet

Description:

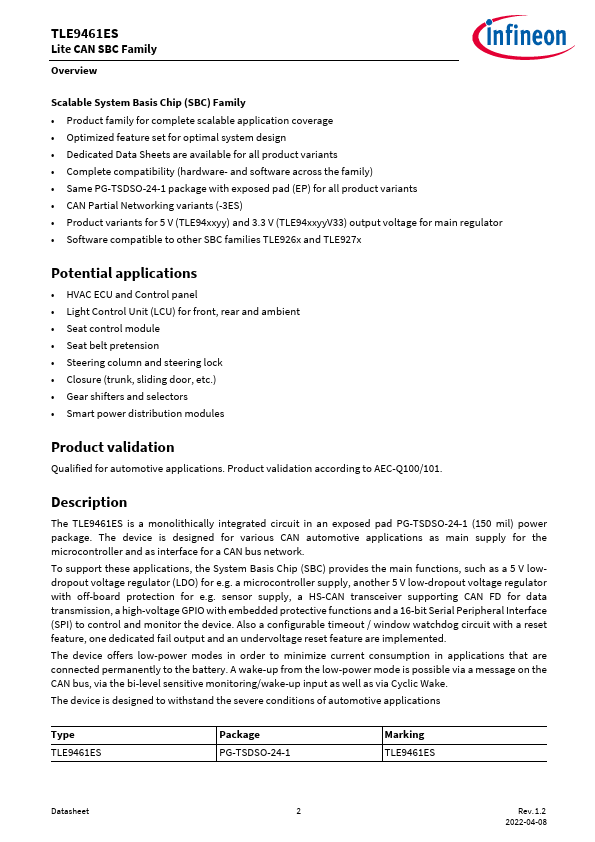

Lite can sbc. The TLE9461ES is a monolithically integrated circuit in an exposed pad PG-TSDSO-24-1 (150 mil) power package. The device is designed

TLE9461ES Application

• Applications Revision 1.3, 2012-05-04
• Charge pump-output for N-channel MOSFET reverse-polarity protection or load switch feature with int
