TLF30682QVS01 - Power management IC

Infineon

TLF30682QVS01 Datasheet Preview — Preview of TLF30682QVS01 PDF

Datasheet Details

Part number	TLF30682QVS01
Manufacturer	Infineon ↗
File Size	2.03 MB
Description	Power management IC
Datasheet	TLF30682QVS01-Infineon.pdf

TLF30682QVS01 Product details

Description

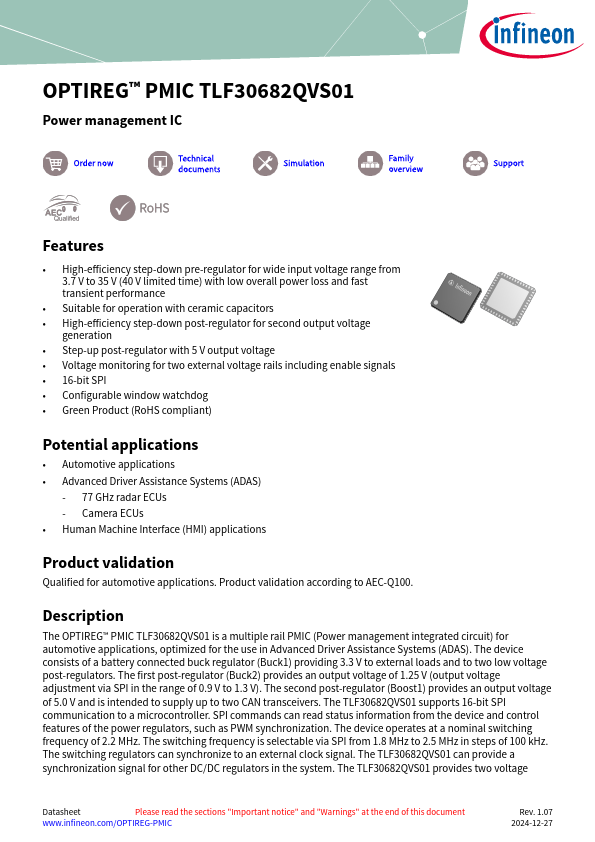

The OPTIREG™ PMIC TLF30682QVS01 is a multiple rail PMIC (Power management integrated circuit) for automotive applications, optimized for the use in Advanced Driver Assistance Systems (ADAS).

Features

High-efficiency step-down pre-regulator for wide input voltage range from 3.7 V to 35 V (40 V limited time) with low overall power loss and fast transient performance.
Suitable for operation with ceramic capacitors.
High-efficiency step-down post-regulator for second output voltage generation.
Step-up post-regulator with 5 V output voltage.
Voltage monitoring for two external voltage rails including enable signals.
16-bit SPI.
Confi.
