Datasheet Details

Part number: TLF35585QUS01
Manufacturer: Infineon ↗
File Size: 588.42 KB
Datasheet: TLF35585QUS01-Infineon.pdf
Description: Functional safety PMIC

TLF35585QUS01 Product details

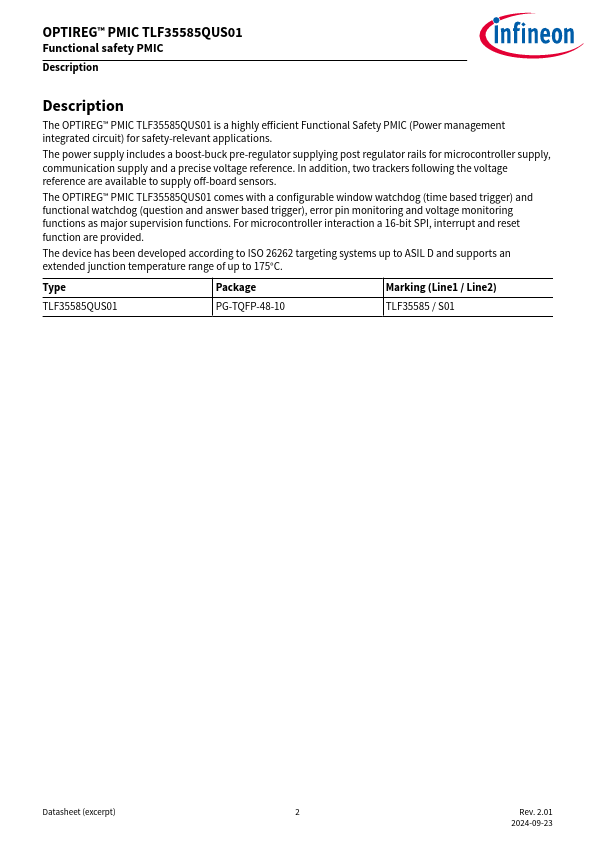

Description

Description The.

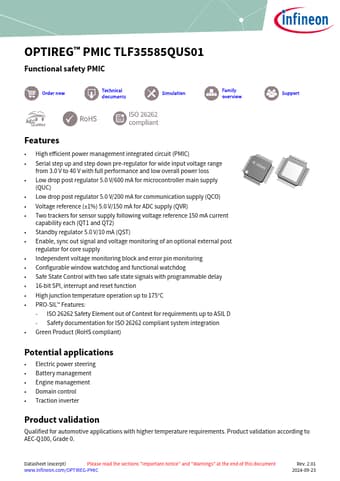

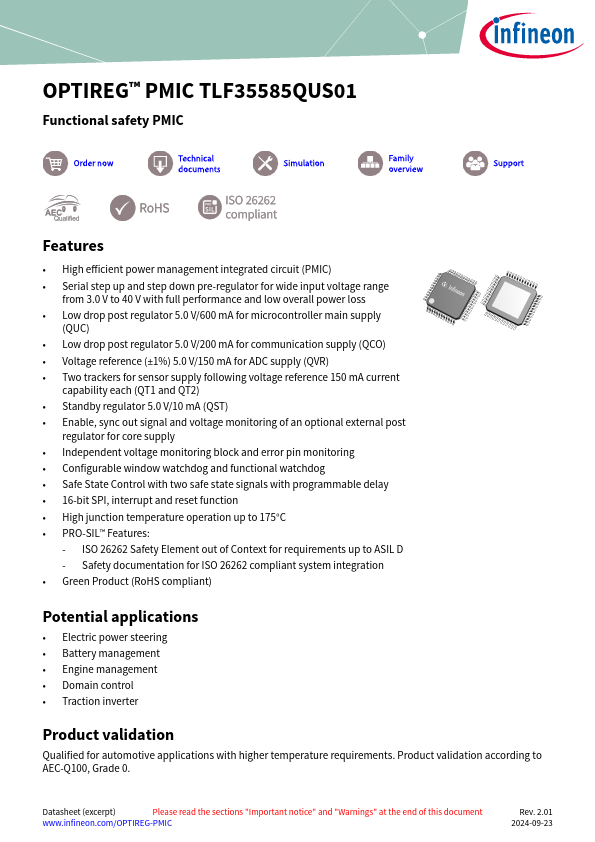

Features

High efficient power management integrated circuit (PMIC).
Serial step up and step down pre-regulator for wide input voltage range from 3.0 V to 40 V with full performance and low overall power loss.
Low drop post regulator 5.0 V/600 mA for microcontroller main supply (QUC).
Low drop post regulator 5.0 V/200 mA for communication supply (QCO).
Voltage reference (±1%) 5.0 V/150 mA for ADC supply (QVR).
Two trackers for sensor supply following.
