TLF35585QVS02 - Functional safety PMIC

Infineon

TLF35585QVS02 Datasheet Preview — Preview of TLF35585QVS02 PDF

Datasheet Details

Part number	TLF35585QVS02
Manufacturer	Infineon ↗
File Size	533.47 KB
Description	Functional safety PMIC
Datasheet	TLF35585QVS02-Infineon.pdf

TLF35585QVS02 Product details

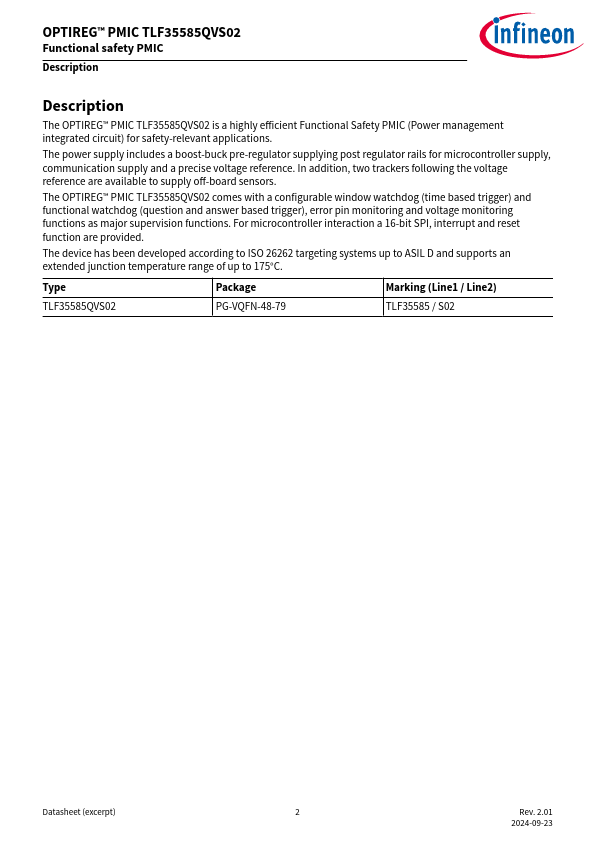

Description

Description The OPTIREG™ PMIC TLF35585QVS02 is a highly efficient Functional Safety PMIC (Power management integrated circuit) for safety-relevant applications.The power supply includes a boost-buck pre-regulator supplying post regulator rails for microcontroller supply, communication supply and a precise voltage reference.In addition, two trackers following the voltage reference are available to supply off-board sensors.The OPTIREG™ PMIC TLF35585QVS02 comes with a configurable window watch

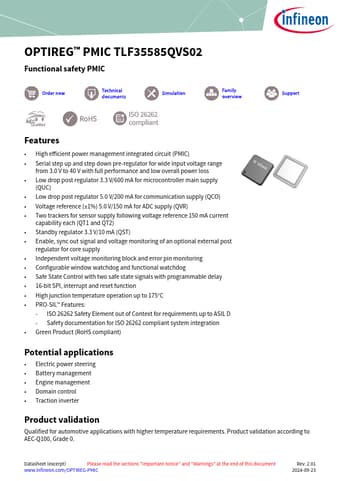

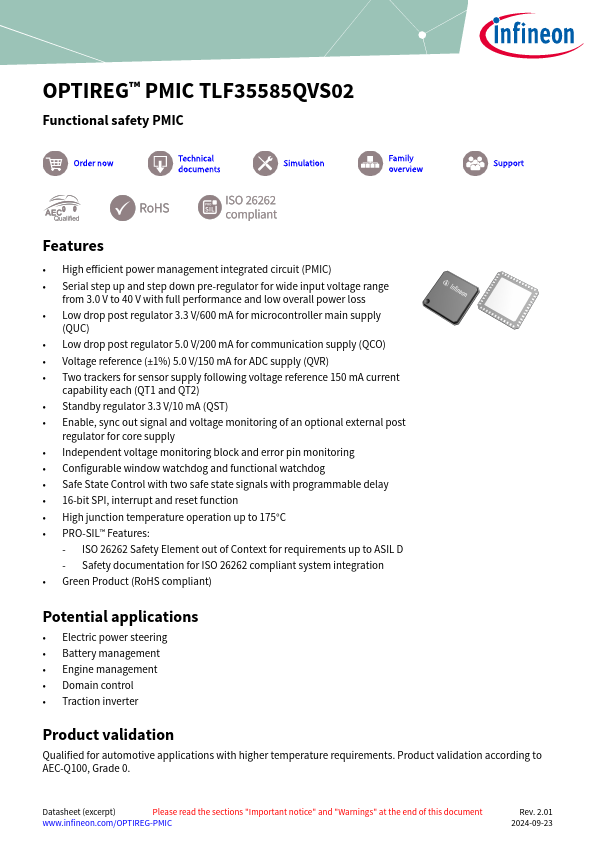

Features

High efficient power management integrated circuit (PMIC).
Serial step up and step down pre-regulator for wide input voltage range from 3.0 V to 40 V with full performance and low overall power loss.
Low drop post regulator 3.3 V/600 mA for microcontroller main supply (QUC).
Low drop post regulator 5.0 V/200 mA for communication supply (QCO).
Voltage reference (±1%) 5.0 V/150 mA for ADC supply (QVR).
Two trackers for sensor supply following.
