XDPL8210 - Digital Flyback Controller

Infineon

📥 Download Datasheet

XDPL8210 Datasheet Preview — Preview of XDPL8210 PDF

Datasheet Details

Part number	XDPL8210
Manufacturer	Infineon
File Size	727.99 KB
Description	Digital Flyback Controller
Datasheet	XDPL8210-Infineon.pdf

XDPL8210 Product details

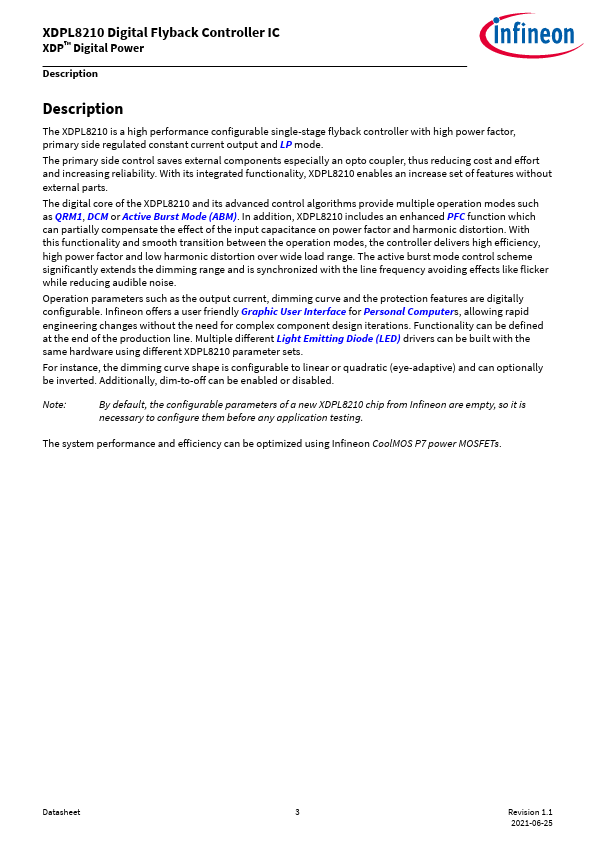

Description

Description The XDPL8210 is a high performance configurable single-stage flyback controller with high power factor, primary side regulated constant current output and LP mode.The primary side control saves external components especially an opto coupler, thus reducing cost and effort and increasing reliability.With its integrated functionality, XDPL8210 enables an increase set of

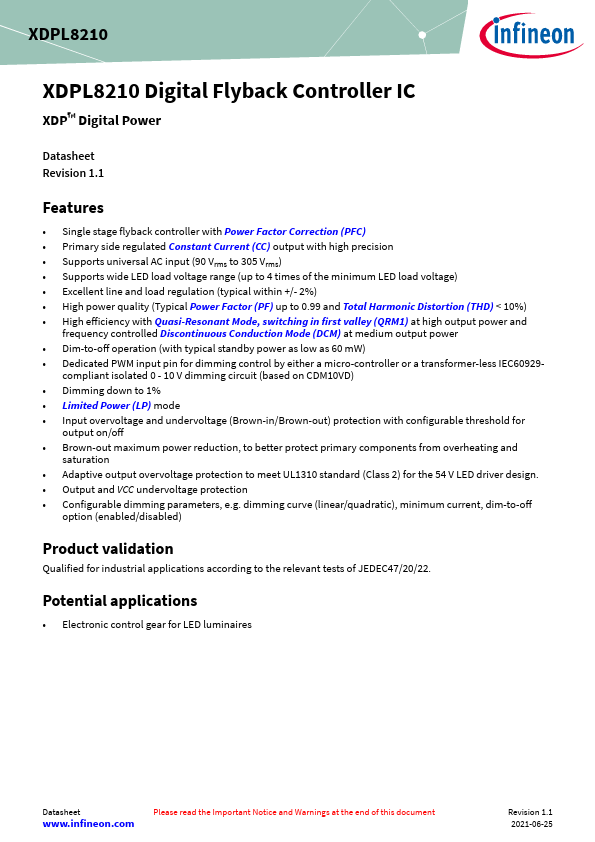

Features

Single stage flyback controller with Power Factor Correction (PFC).
Primary side regulated Constant Current (CC) output with high precision.
Supports universal AC input (90 Vrms to 305 Vrms).
Supports wide LED load voltage range (up to 4 times of the minimum LED load voltage).
Excellent line and load regulation (typical within +/- 2%).
High power quality (Typical Power Factor (PF) up to 0.99 and Total Harmonic Distortion (THD) < 10%).
