XDPL8219 - Digital Flyback Controller

Infineon

📥 Download Datasheet

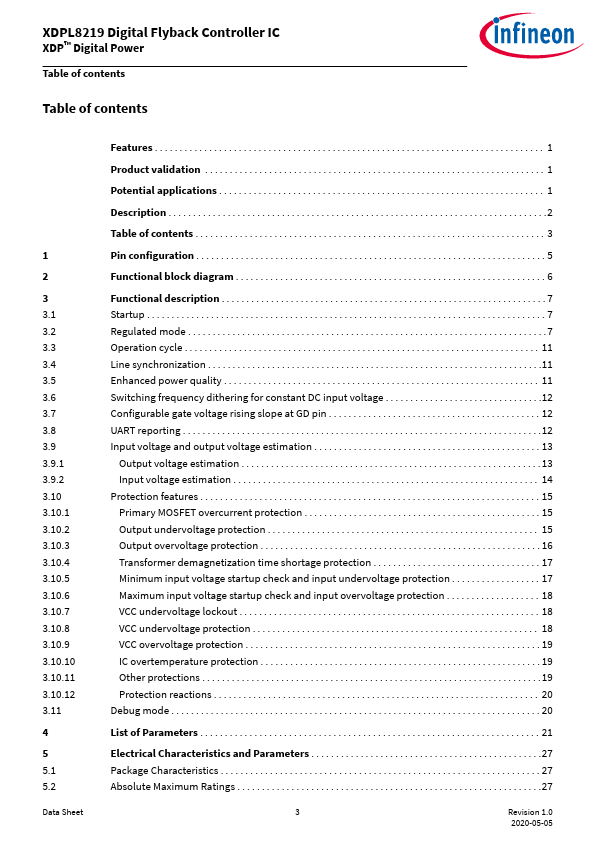

XDPL8219 Datasheet Preview — Preview of XDPL8219 PDF

Datasheet Details

Part number	XDPL8219
Manufacturer	Infineon
File Size	611.72 KB
Description	Digital Flyback Controller
Datasheet	XDPL8219-Infineon.pdf

XDPL8219 Product details

Description

AC Input voltage Output VCC ZCD GD HV XDPL8219 CS GND UART FB CoolMOS™ Feedback Circuit Figure 1 Note: Typical Application for XDPL8219 The SSR CV output in Figure 1 should not be used to directly drive the LEDs.For LED lighting application, it should be converted to constant current output by a second-stage DC-DC switching or linear regulator.Product type XDPL8219 Package PG-DSO-8 Marking L8219 Firmware version Ordering code 0.0.1.1 SP002990946 Description The XDPL8219 is a

Features

Flyback controller with Power Factor Correction (PFC).
Secondary Side Regulated (SSR) Constant Voltage (CV) output.
Integrated 600 V high voltage startup cell.
Supports universal AC input (90 Vrms to 305 Vrms) and DC input (127 V to 431 V).
Enhanced Total Harmonic Distortion (THD) correction.
Enhanced Power Factor (PF) correction.
PF > 0.9 and THD < 10% across a wide load range, for AC input up to 277 Vrms.
High efficiency.
