XDPP1148-100B, XDPP1140-100B - Digital power supply controller

Infineon

XDPP1148-100B Datasheet Preview — This datasheet PDF includes multiple part numbers: XDPP1148-100B, XDPP1140-100B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	XDPP1148-100B, XDPP1140-100B
Manufacturer	Infineon ↗
File Size	1.08 MB
Description	Digital power supply controller
Datasheet	XDPP1140-100B-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: XDPP1148-100B, XDPP1140-100B. Please refer to the document for exact specifications by model.

XDPP1148-100B Product details

Description

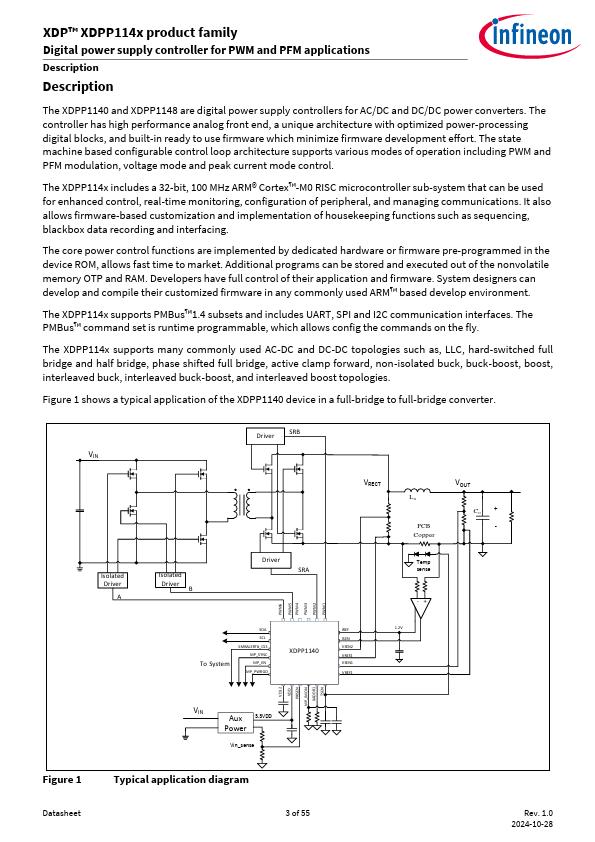

Description The XDPP1140 and XDPP1148 are digital power supply controllers for AC/DC and DC/DC power converters.The controller has high performance analog front end, a unique architecture with optimized power-processing digital blocks, and built-in ready to use firmware which minimize firmware development effort.The state machine based configurable control loop architecture supports various modes of operation including PWM and PFM modulation, voltage mode and peak current mode control.The XDP

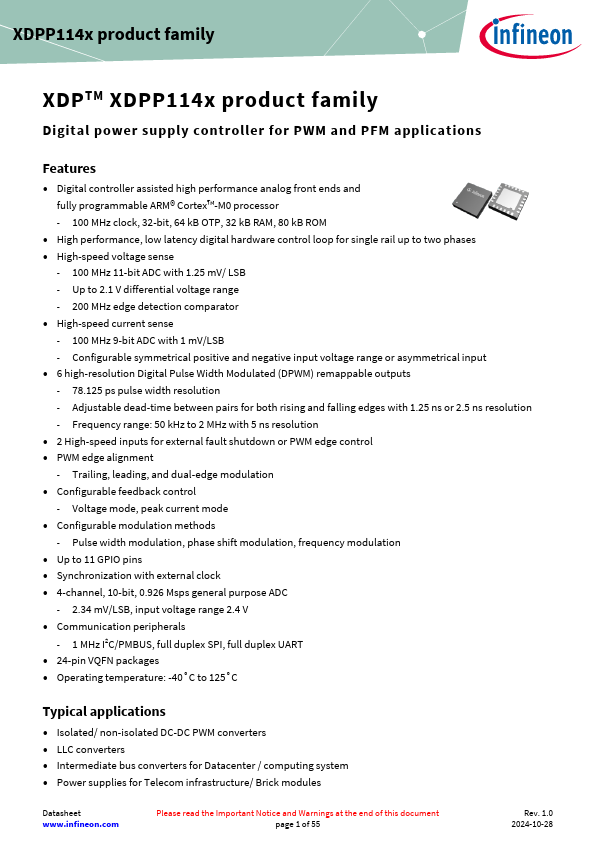

Features

Digital controller assisted high performance analog front ends and fully programmable ARM® Cortex™-M0 processor - 100 MHz clock, 32-bit, 64 kB OTP, 32 kB RAM, 80 kB ROM.
High performance, low latency digital hardware control loop for single rail up to two phases.
High-speed voltage sense - 100 MHz 11-bit ADC with 1.25 mV/ LSB - Up to 2.1 V differential voltage range - 200 MHz edge detection comparator.
High-speed current sense - 100 MHz 9-bit ADC with 1 mV/LS.
