XDPS2201 Datasheet - Infineon

XDP Hybrid-flyback Controller

XDPS2201 Features

* Configurable brown-in and brown-out protection

* Configurable built-in soft-start

* Configurable burst mode entry and exit current thresholds with small hysteresis

* Configurable overcurrent protection with two levels for peak and transient load

* Configurab

XDPS2201 General Description

The XDPS2201 contains a Hybrid-flyback controller that is based on an asymmetrical half-bridge control. The half-bridge is driving a conventional flyback transformer in conjunction with a serial capacitor. The main inductance of the flyback transformer and the serial capacitor are building a resona.

XDPS2201 Datasheet (1.12 MB)

XDPS2201 Datasheet Preview — Preview of XDPS2201 PDF

Datasheet Details

Part number:

XDPS2201

Manufacturer:

Infineon ↗

File Size:

1.12 MB

Description:

Xdp hybrid-flyback controller.

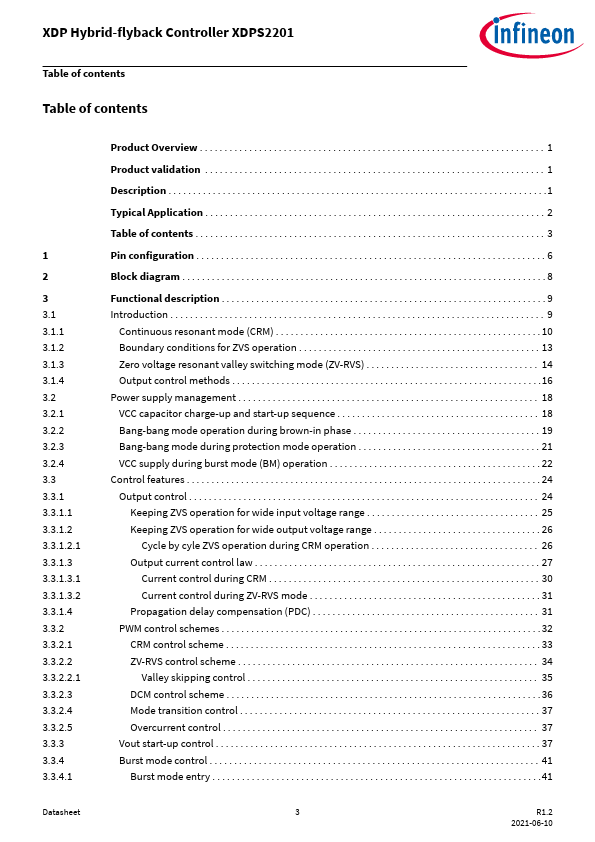

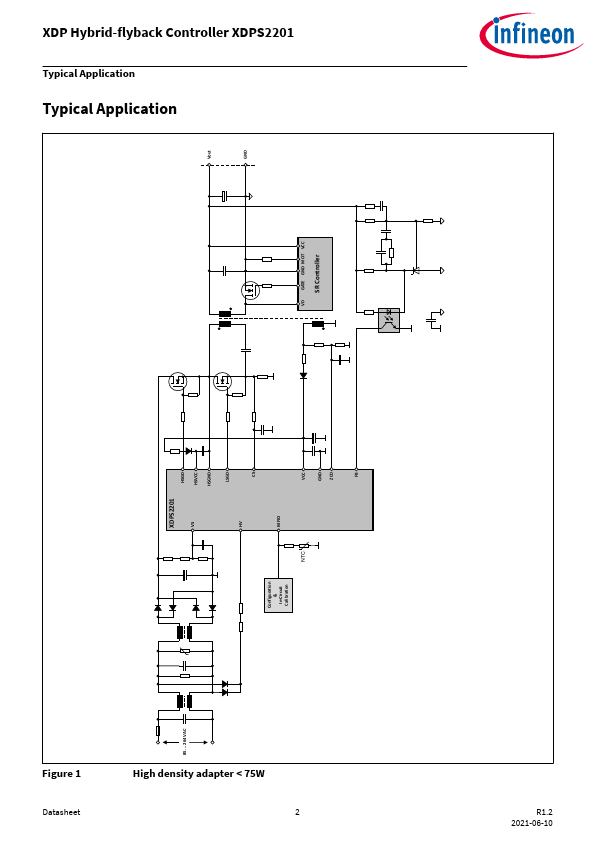

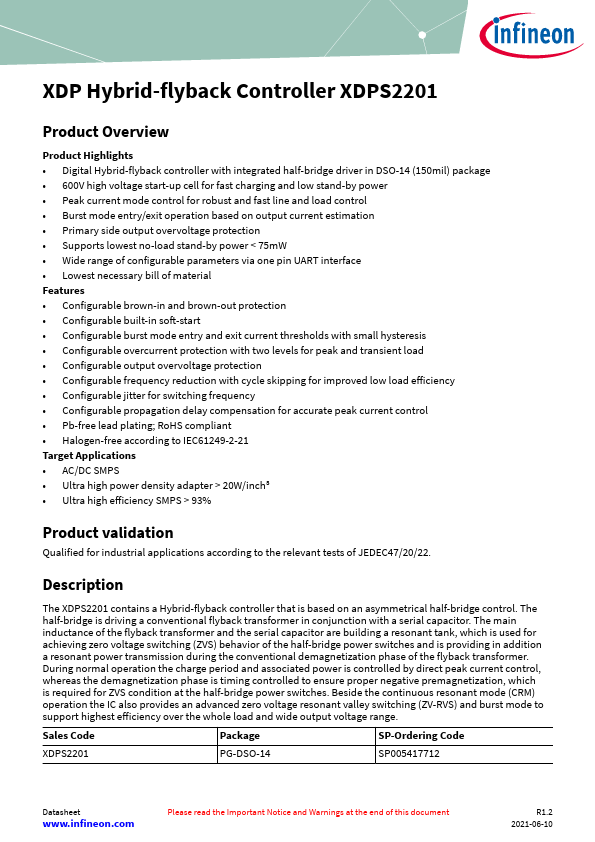

XDP Hybrid-flyback Controller XDPS2201 Product Overview Product Highlights Digital Hybrid-flyback controller with integrated half-bridge dr.
