sTT800N18P55 Soft starter

sTT800N18P55 Description

Sanftanlauf-Modul Soft starter Module Key Parameters VDRM / VRRM Ioverload(21s) ITSM VT0 rT RthJA (21s) 1800 V 800 A 6300 A 0,9 V 0,83 mΩ 0,196 K/W .

sTT800N18P55 Features

* Pressure contact technology for high reliability
* Advanced Medium Power Technology (AMPT)
* Integrated optimized heatsink Typische Anwendungen
* Sanftanlasser
* Bypass-Schalter
* Leistungssteller

sTT800N18P55 Applications

* Soft starter
* Bypass switch
* Power controller
* Static switch content of customer DMX code serial number SAP material number Internal production order number datecode (production year) datecode (production week) DMX code digit 1..5 6..12 13..20 21..22 23..24 DMX code digit qua

📥 Download Datasheet

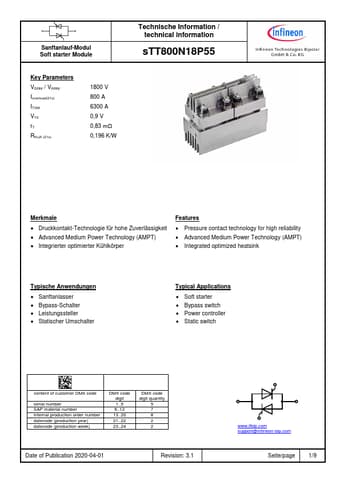

Preview of sTT800N18P55 PDF
