STT818B Datasheet - ST Microelectronics

STT818B_STMicroelectronics.pdf

Preview of STT818B PDF

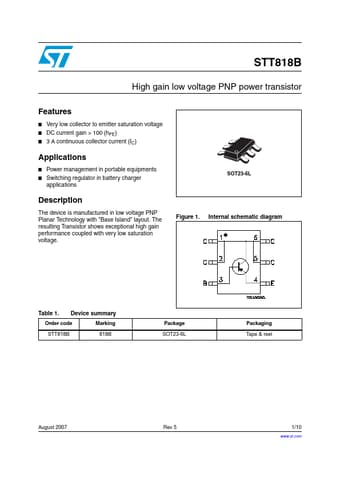

STT818B Datasheet Preview Page 2 STT818B Datasheet Preview Page 3

Datasheet Details

Part number:

STT818B

Manufacturer:

STMicroelectronics ↗

File Size:

130.78 KB

Description:

High gain low voltage pnp power transistor.

STT818B, HIGH GAIN LOW VOLTAGE PNP POWER TRANSISTOR

The device is manufactured in low voltage PNP Planar Technology with "Base Island" layout.

The resulting Transistor shows exceptional high gain performance coupled with very low saturation voltage.

SOT23-6L Figure 1.

Internal schematic diagram Table 1.

Device summary Order code Marking STT818B
