STT13005

High voltage fast-switching NPN power transistor

STT13005 Features

* NPN bipolar transistor Medium voltage capability Low spread of dynamic parameters Minimum lot-to-lot spread for reliable operation Very high switching speed 2 1 Applications

* 3 SOT-32 Electronic ballast for fluorescent lighting Flyback and forward single

STT13005 General Description

The device is manufactured using high voltage Multi-Epitaxial Planar technology for high switching speeds and medium voltage capability. It uses a Cellular Emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. The device is designed for use in l.

STT13005 Datasheet (306.54 KB)

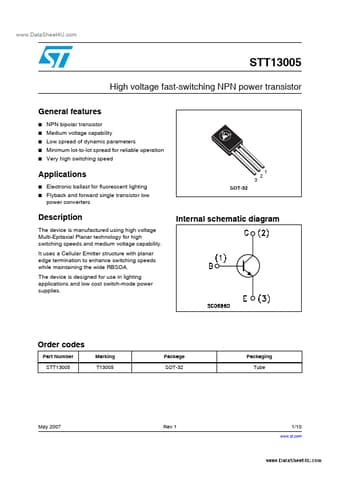

Preview of STT13005 PDF

Datasheet Details

Part number:

STT13005

Manufacturer:

STMicroelectronics ↗

File Size:

306.54 KB

Description:

High voltage fast-switching npn power transistor.
