STT165 Datasheet (Sirectifier)

STT165, Thyristor Modules

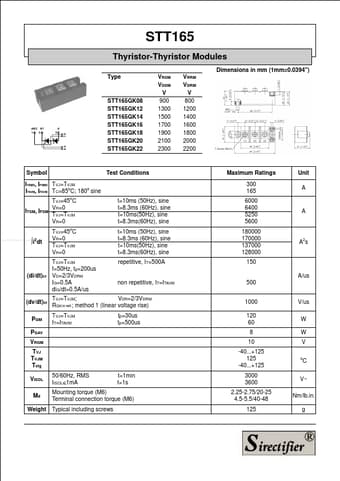

STT165 Thyristor-Thyristor Modules Dimensions in mm (1mm=0.0394") Type VRSM VDSM V 900 1300 1500 1700 1900 2100 2300 VRRM VDRM V 800 1200 1400 1600 1800 2000 2200 STT165GK08 STT165GK12 STT165GK14 STT165GK16 STT165GK18 STT165GK20 STT165GK22 Symbol ITRMS, IFRMS TVJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=TVJM f=50Hz, tp=200us VD=2/3VDRM IG=0.5A diG/dt=0.5A/us Test Conditions Maximum Ratings 300 165 Unit A ITSM, IFSM t=10ms (50Hz), sin

STT165 Features

* International standard package

* Copper base plate

* Planar passivated chips

* Isolation voltage 3600 V~ APPLICATIONS

* Motor control

* Power converter

* Heat and temperature control for industrial furnaces and chemical processes

* Lighting control

* Contactles
