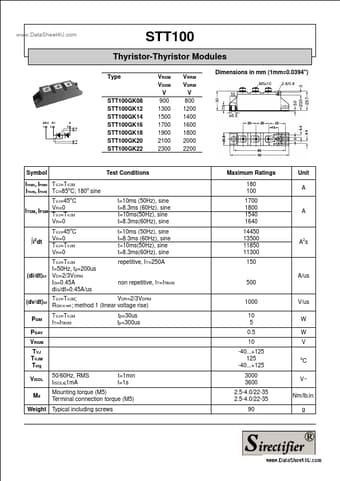

STT100 Thyristor-Thyristor Modules

www.DataSheet4U.com STT100 Thyristor-Thyristor Modules Type VRSM VDSM V 900 1300 1500 1700 1900 2100 2300 VRRM VDRM V 800 1200 1400 1600 1800 2000 2200 Dimensions in mm (1mm=0.0394") STT100GK08 STT100GK12 STT100GK14 STT100GK16 STT100GK18 STT100GK20 STT100GK22 Symbol ITRMS, IFRMS TVJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=TVJM f=50Hz, tp=200us VD=2/3VDRM IG=0.45A diG/dt=0.45A/us Test Conditions Maximum Ratings 180 100 Unit A ITSM, I.

STT100 Features

* International standard package

* Copper base plate

* Planar passivated chips

* Isolation voltage 3600 V~ APPLICATIONS

* DC motor control

* Softstart AC motor controller

* Light, heat and temperature control ADVANTAGES

* Space and weight savings

* Simple mounti
