STT27, Thyristor

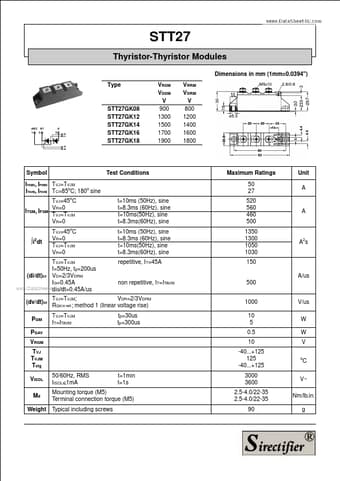

STT27 Thyristor-Thyristor Modules Dimensions in mm (1mm=0.0394") Type VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 STT27GK08 STT27GK12 STT27GK14 STT27GK16 STT27GK18 Symbol ITRMS, IFRMS TVJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=45oC VR=0 TVJ=TVJM VR=0 Test Conditions Maximum Ratings 50 27 Unit A ITSM, IFSM t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(

STT27 Features

* International standard package

* Copper base plate

* Planar passivated chips

* Isolation voltage 3600 V~ APPLICATIONS

* DC motor control

* Softstart AC motor controller

* Light, heat and temperature control ADVANTAGES

* Space and weight savings

* Simple mounti
