STT18 Thyristor-Thyristor Modules

www.DataSheet4U.com STT18 Thyristor-Thyristor Modules Dimensions in mm (1mm=0.0394") Type VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 STT18GK08 STT18GK12 STT18GK14 STT18GK16 STT18GK18 Symbol ITRMS, IFRMS TVJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=TVJM f=50Hz, tp=200us VD=2/3VDRM IG=0.45A diG/dt=0.45A/us Test Conditions Maximum Ratings 40 18 Unit A ITSM, IFSM t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10.

STT18 Features

* International standard package

* Copper base plate

* Planar passivated chips

* Isolation voltage 3600 V~ APPLICATIONS

* DC motor control

* Softstart AC motor controller

* Light, heat and temperature control ADVANTAGES

* Space and weight savings

* Simple mounti

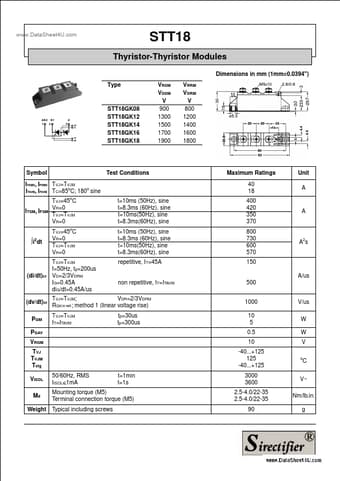

STT18 Datasheet (624.48 KB)

STT18 Datasheet Preview — Preview of STT18 PDF

Datasheet Details

Part number:

STT18

Manufacturer:

Sirectifier Semiconductors

File Size:

624.48 KB

Description:

Thyristor-thyristor modules.
