STT13005D Datasheet - ST Microelectronics

STT13005D - High voltage fast-switching NPN power transistor

The device is manufactured using high voltage multi-epitaxial planar technology for high switching speeds and medium voltage capability.

It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA.

The device is designed for use in l

STT13005D Features

* Integrated antiparallel collector-emitter diode High voltage capability Minimum lot-to-lot spread for reliable operation Very high switching speed Applications

* Electronic ballast for fluorescent lighting Flyback and forward single transistor low power converter

STT13005D_STMicroelectronics.pdf

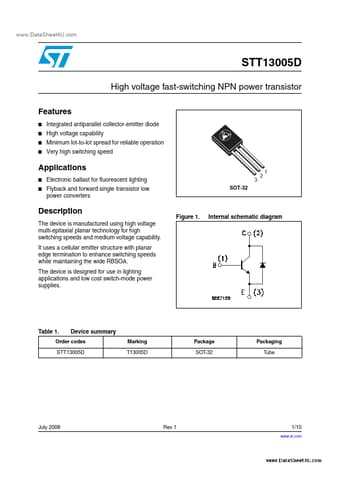

Preview of STT13005D PDF
STT13005D Datasheet Preview Page 2 STT13005D Datasheet Preview Page 3

Datasheet Details

Part number:

STT13005D

Manufacturer:

STMicroelectronics ↗

File Size:

277.30 KB

Description:

High voltage fast-switching npn power transistor.
