STT5NF20V N-CHANNEL POWER MOSFET

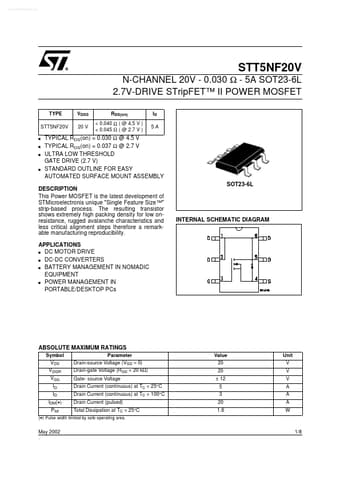

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com N-CHANNEL 20V - 0.030 Ω - 5A SOT23-6L 2.7V-DRIVE STripFET™ II POWER MOSFET TYPE STT5NF20V s s s STT5NF20V VDSS 20 V RDS(on) < .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

Preview of STT5NF20V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- sour
