STT5N2VH5 Datasheet, Mosfet, STMicroelectronics

STT5N2VH5 Features

  • Mosfet 4 5 6 3 2 1 SOT23-6L Order code VDS RDS(on) max ID PTOT STT5N2VH5 20 V 0.04 Ω (VGS=2.5 V) 5 A 1.6 W
  • Very low profile package
  • Conduction losses reduced

PDF File Details

Part number:

STT5N2VH5

Manufacturer:

STMicroelectronics ↗

File Size:

817.32kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™V technology. The device has been optimized to

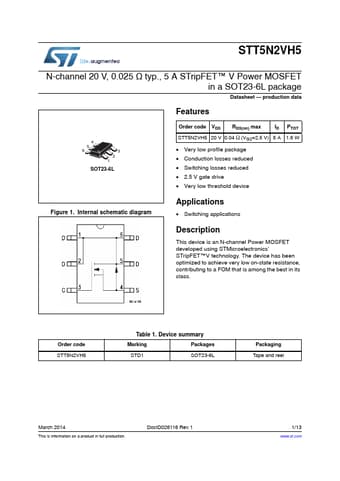

Datasheet Preview: STT5N2VH5 📥 Download PDF (817.32kb)
Page 2 of STT5N2VH5 Page 3 of STT5N2VH5

STT5N2VH5 Application

  • Applications
  • Switching applications Description This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™V
