STT2PF60L - P-CHANNEL POWER MOSFET

STT2PF60L Description

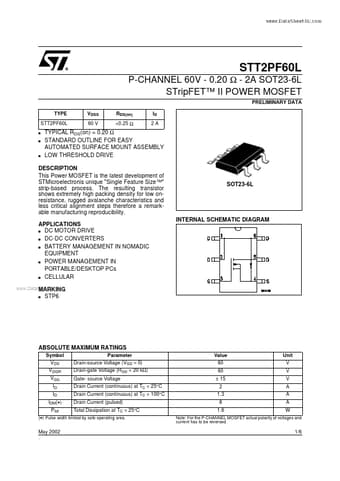

P-CHANNEL 60V - 0.20 Ω - 2A SOT23-6L STripFET™ II POWER MOSFET PRELIMINARY DATA TYPE STT2PF60L s s STT2PF60L VDSS 60 V RDS(on) <0.25 Ω ID 2A s T.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STT2PF60L Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs s CELLULAR www. DataSheet4U. com MARKING s SOT23-6L INTERNAL SCHEMATIC DIAGRAM STP6 ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Parameter Drain-source Volt
