STT4P3LLH6 - P-Channel Power MOSFET

STT4P3LLH6 Description

STT4P3LLH6 Datasheet P-channel 30 V, 48 mΩ typ., 4 A, STripFET H6 Power MOSFET in an SOT23-6L package SOT23-6L .
G (3) This device is a P-channel Power MOSFET developed using the STripFET H6 technology with a new trench gate structure.

STT4P3LLH6 Features

* Order code VDS RDS(on) max. ID STT4P3LLH6 30 V 56 mΩ at 10 V 4A
* Very low on-resistance
* Very low gate charge
* High avalanche ruggedness

📥 Download Datasheet

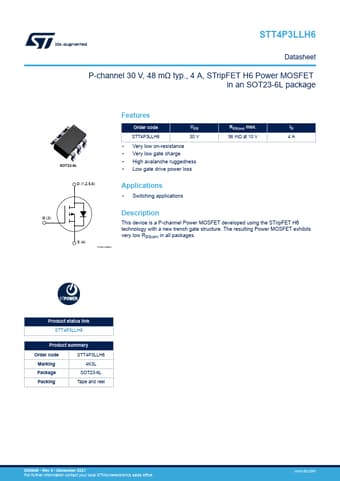

Preview of STT4P3LLH6 PDF
datasheet Preview Page 2 datasheet Preview Page 3
