STT2603 - P-Channel Enhancement Mode Power MosFET

STT2603 Description

STT2603 Elektronische Bauelemente RoHS Compliant Product -5A, -20V,RDS(ON) 65m £[ P-Channel Enhancement Mode Power Mos.FET .
The STT2603 utilized advanced processing techniques to achieve the lowest possible on-resistance, extremely efficient and cost-effectiveness device.

STT2603 Features

* Small package outline

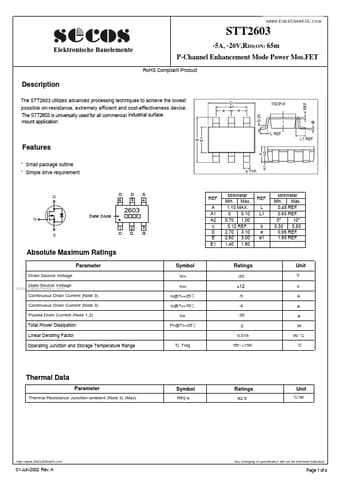

* Simple drive requirement D D 6 D 5 S 4 REF. A A1 A2 c D E E1 G Date Code 1 D 2603 2 D 3 G S Millimeter Min. Max. 1.10 MAX. 0 0.10 0.70 1.00 0.12 REF. 2.70 3.10 2.60 3.00 1.40 1.80 REF. L L1 b e e1 Millimeter Min. Max. 0.45 REF. 0.60 REF. 0° 10° 0.30 0.50
