STT2604, N-Channel Enhancement Mode Power MosFET

STT2604 Elektronische Bauelemente 5.5A, 3 0V,RDS(ON) 45m£[ N-Channel Enhancement Mode Power Mos.FET RoHS Compliant Product .
The STT2604 utiltzed advance processing techniques to achieve the lowest possible on-resistance, extermely efficient and cost-effectiveness device.

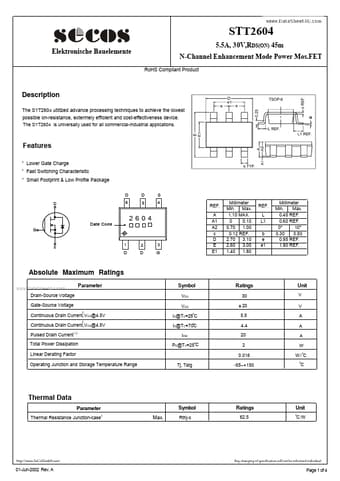

datasheet Preview Page 1 from Datasheet4u.com

STT2604_SeCoSHalbleitertechnologieGmbH.pdf

STT2604 Datasheet Preview — Preview of STT2604 PDF

Datasheet Details

Part number:

STT2604

Manufacturer:

SeCoS Halbleitertechnologie GmbH

File Size:

634.93 KB

Description:

N-Channel Enhancement Mode Power MosFET

Features

* Lower Gate Charge
* Fast Switching Characteristic
* Small Footprint & Low Profile Package D D 5 S 4 D 6 REF. A A1 A2 c D E E1 Date Code 2604 G 1 D 2 D 3 G S Millimeter Min. Max. 1.10 MAX. 0 0.10 0.70 1.00 0.12 REF. 2.70 3.10 2.60 3.00 1.40 1.80 REF. L L1 b e e1 Millimeter Min
