STT130 Datasheet, Modules, Sirectifier Semiconductors

STT130 Features

  • Modules
  • International standard package
  • Copper base plate
  • Planar passivated chips
  • Isolation voltage 3600 V~ APPLICATIONS
  • Motor control

PDF File Details

Part number:

STT130

Manufacturer:

Sirectifier Semiconductors

File Size:

501.71kb

Download:

📄 Datasheet

Description:

Thyristor-thyristor modules.

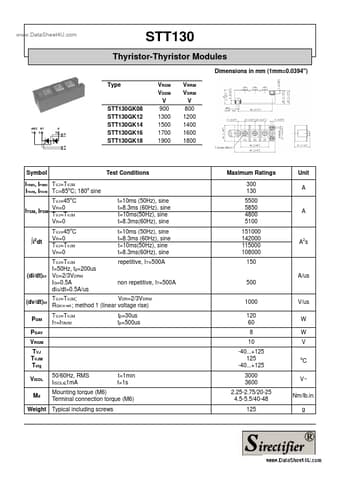

Datasheet Preview: STT130 📥 Download PDF (501.71kb)
Page 2 of STT130 Page 3 of STT130

STT130 Application

  • Applications
  • Motor control
  • Power converter
  • Heat and temperature control for industrial furnaces and chemical processes

TAGS

STT130
Thyristor-Thyristor
Modules
Sirectifier Semiconductors
