STT8205S N-Channel MOSFET

STT8205S Description

Elektronische Bauelemente STT8205S 6A, 20V, RDS(ON) 28m N-Channel Enhancement Mode Power MOSFET RoHS Compliant Product A suffix of “-C” specifies h.
The STT8205S provide the designer with best combination of fast switching, low on-resistance and cost-effectiveness.

STT8205S Features

* Low on-resistance
* Capable of 2.5V gate drive
* Low drive current B 123 F DG K C H J MARKING CODE 8205S    = Date Code PACKAGE INFORMATION Package MPQ TSOP-6 3K LeaderSize 7’ inch REF. A B C D E F Millimeter Min. Max. 2.70 3.10 2.60 3.00 1.40 1.80 1.10 MAX. 1.9

📥 Download Datasheet

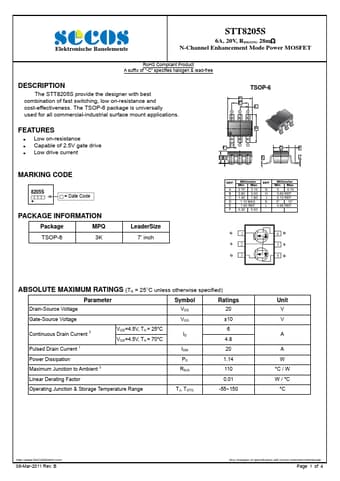

Preview of STT8205S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STT8205S
Manufacturer
SeCoS
File Size
843.47 KB
Datasheet
STT8205S-SeCoS.pdf
Description
N-Channel MOSFET
