STT3423P

P-Channel MOSFET

STT3423P Features

* F DG K C H J Low RDS(on) provides higher efficiency and extends battery life. Low thermal impedance copper leadframe TSOP-6 saves board space. Fast switching speed. High performance trench technology. REF. A B C D E F PRODUCT SUMMARY PRODUCT SUMMARY VDS(V) -20 RDS(on) (

STT3423P General Description

These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA c.

STT3423P Datasheet (490.68 KB)

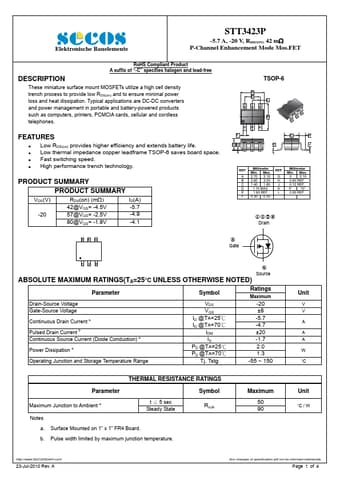

Preview of STT3423P PDF

Datasheet Details

Part number:

STT3423P

Manufacturer:

SeCoS

File Size:

490.68 KB

Description:

P-channel mosfet.
STT3423P Elektronische Bauelemente -5.7 A, -20 V, RDS(ON) 42 mļ— P-Channel Enhancement Mode Mos.FET RoHS Compliant Product A suffix of ā€œ-Cā€ specifies .
