STT3455 - P-Channel MOSFET

Product Overview

SeCoS

Part number	STT3455
Manufacturer	SeCoS
File Size	555.05 KB
Description	P-Channel MOSFET
Datasheet	STT3455 Datasheet

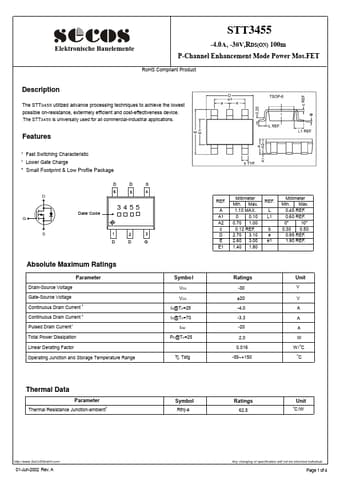

Additional preview pages of the STT3455 datasheet.

The STT3455 utiltzed advance processing techniques to achieve the lowest possible on-resistance, extermely efficient and cost-effectiveness device.

Fast Switching Characteristic.
Lower Gate Charge.
Small Footprint & Low Profile Package D D 5 S 4 D 6 REF. 3455 Date Code G 1 D 2 D 3 G S A A1 A2 c D E E1 Millimeter Min. Max. 1.10 MAX. 0 0.10 0.70 1.00 0.12 REF. 2.70 3.10 2.60 3.00 1.40 1.80 REF. L L1 b e e1 Millimeter Min. Max. 0.45 REF. 0.60 REF. 0° 10° 0.30 0.50 0.95 REF. 1.90 REF. Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Drain Current Pulsed D.
