STT3808NE - N-Channel MOSFET

STT3808NE Description

STT3808NE Elektronische Bauelemente 6A , 20V , RDS(ON) 20 mΩ N-Channel Enhancement Mode Mos.FET RoHS Compliant Product A suffix of “-C” specifies hal.

STT3808NE Applications

* Battery Powered Instruments Portable Computing Mobile Phones Fast switch GPS Units and Media Players 1 2 3 B F DG K C H J PACKAGE INFORMATION Package TSOP-6 MPQ 3K Leader Size 7 inch REF. A B C D E F Millimeter Min. Max. 2.70 3.10 2.60 3.00 1.40 1.80 1.10 MAX. 1.90 REF. 0.30 0.50 REF. G H J

📥 Download Datasheet

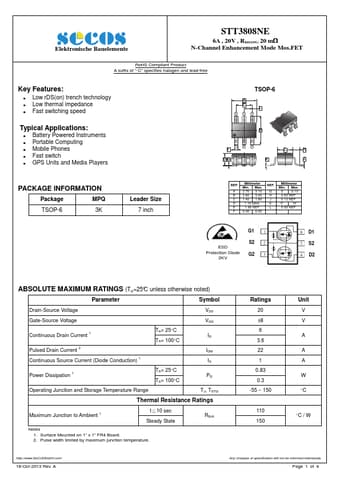

Preview of STT3808NE PDF
datasheet Preview Page 2 datasheet Preview Page 3
