STT3405P

P-Channel MOSFET

STT3405P Features

* Low RDS(on) provides higher efficiency and extends battery life. Miniature TSOP-6 surface mount package saves board space. High power and current handling capability. REF. A B C D E F PACKAGE INFORMATION Package TSOP-6 MPQ 3K LeaderSize 7ā€™ inch Millimeter Min. Max. 2.70 3.10

STT3405P General Description

These miniature surface mount MOSFETs utilize a high cell density process. Low RDS(on) assures minimal power loss and conserves energy, making this device ideal for use in power management circuitry. Typical applications are PWMDC-DC converters, power management in portable and battery-powered produ.

STT3405P Datasheet (563.65 KB)

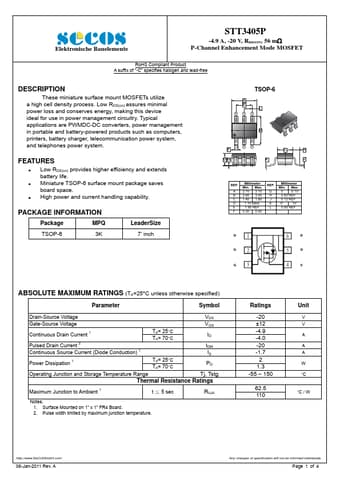

Preview of STT3405P PDF

Datasheet Details

Part number:

STT3405P

Manufacturer:

SeCoS

File Size:

563.65 KB

Description:

P-channel mosfet.
STT3405P Elektronische Bauelemente -4.9 A, -20 V, RDS(ON) 56 mļ— P-Channel Enhancement Mode MOSFET RoHS Compliant Product A suffix of ā€œ-Cā€ specifies h.
