STT3585 - N- and P-Channel 20V MOSFET

STT3585 Description

STT3585-VB STT3585-VB Datasheet N- and P-Channel 20V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY N-Channel P-Channel VDS (V) 20 - 20 RDS(on) (Ω).

STT3585 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC TSOP-6 Top View G1 1 6 D1 3 mm S2 2 5 S1 G2 3 4 D2 2.85 mm D1 S2 G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET AB

📥 Download Datasheet

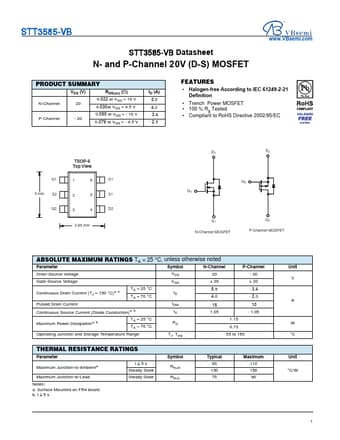

Preview of STT3585 PDF

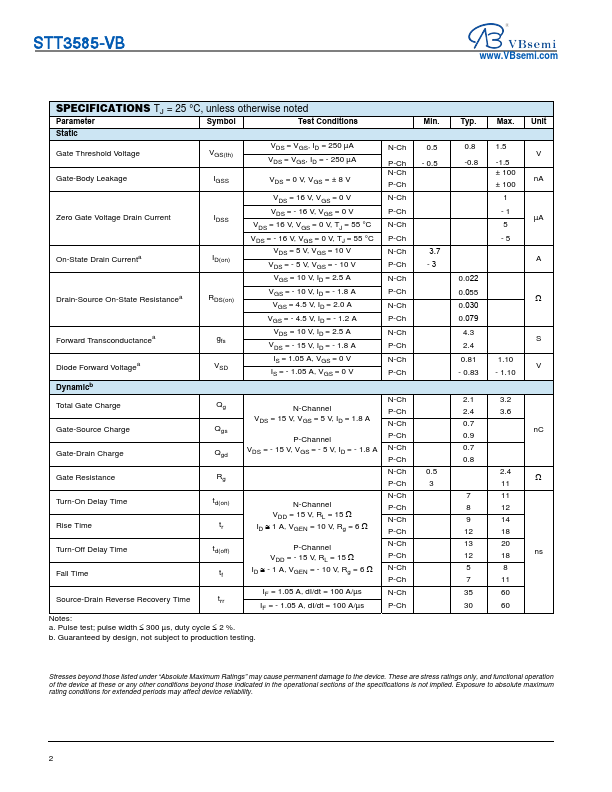

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STT3585
Manufacturer
VBsemi
File Size
361.44 KB
Datasheet
STT3585-VBsemi.pdf
Description
N- and P-Channel 20V MOSFET
