STT3599C

MOSFET

STT3599C Features

* Low RDS(on) provides higher efficiency and extends battery life.

* Low thermal impedance copper leadframe TSOP-6 saves board space.

* Fast switching speed.

* High performance trench technology. PRODUCT SUMMARY PRODUCT SUMMARY VDS(V) 30 -30 RDS(on) ( 0.063@VGS= 10V 0.090@VGS=

STT3599C General Description

These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA c.

STT3599C Datasheet (317.40 KB)

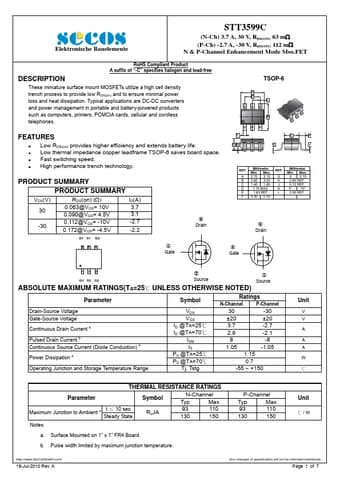

Preview of STT3599C PDF

Datasheet Details

Part number:

STT3599C

Manufacturer:

SeCoS

File Size:

317.40 KB

Description:

Mosfet.
Elektronische Bauelemente STT3599C (N-Ch) 3.7 A, 30 V, RDS(ON) 63 m (P-Ch) -2.7 A, -30 V, RDS(ON) 112 m N & P-Channel Enhancement Mode Mos.FET RoH.
