STT3434N - N-Channel MOSFET

STT3434N Description

Elektronische Bauelemente STT3434N 6.5A, 30V, RDS(ON) 32 mΩ N-Channel Enhancement Mode MOSFET RoHS Compliant Product A suffix of “-C” specifies halo.
These miniature surface mount MOSFETs utilize a high cell density trench process to provide Low RDS(on) and to ensure minimal power loss and heat diss.

STT3434N Features

* Low RDS(on) provides higher efficiency and extends battery life. Low thermal impedance copper lead frame TSOP-6 saves board space. Fast switching speed High performance trench technology PACKAGE INFORMATION Package MPQ TSOP-6 3K Leader Size 7 inch TSOP-6 A E L 654 B 123 F DG K C H J REF

📥 Download Datasheet

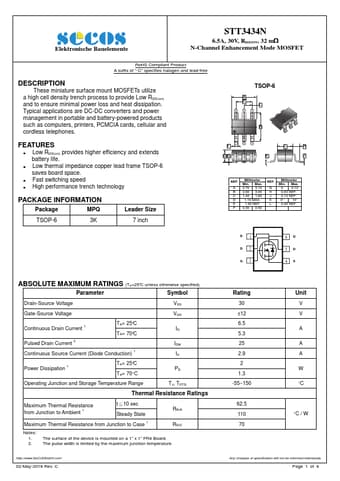

Preview of STT3434N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STT3434N
Manufacturer
SeCoS
File Size
564.28 KB
Datasheet
STT3434N-SeCoS.pdf
Description
N-Channel MOSFET
