STT3922N

N-channel MOSFET

SeCoS Halbleitertechnologie

STT3922N Features

* Low on-resistance

* Low drive current

* Low RDS(on) Provides Higher Efficiency and Extends Battery Life

* Fast switching speed

* High performance trench technology PACKAGE INFORMATION Package MPQ TSOP-6 3K Leader Size 7 inch TSOP-6 A E L 654 B 123 F DG K C H J REF.

STT3922N General Description

These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers, printers, and PCMC.

STT3922N Datasheet (317.94 KB)

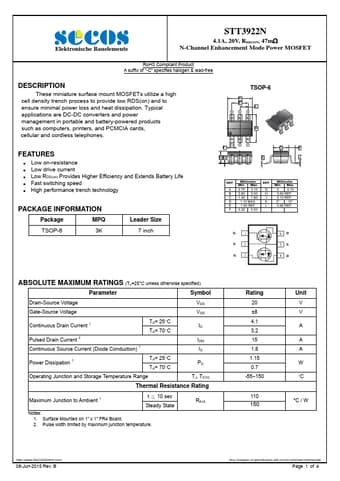

STT3922N Datasheet Preview — Preview of STT3922N PDF

Datasheet Details

Part number:

STT3922N

Manufacturer:

SeCoS Halbleitertechnologie

File Size:

317.94 KB

Description:

N-channel mosfet.
Elektronische Bauelemente STT3922N 4.1A, 20V, RDS(ON) 47m N-Channel Enhancement Mode Power MOSFET RoHS Compliant Product A suffix of “-C” specifies.
