STT3962N

N-Channel MOSFET

SeCoS

STT3962N Features

* Low RDS(on) provides higher efficiency and extends battery life.

* Miniature TSOP-6 surface mount package saves board space. 123 F DG K C H J PRODUCT SUMMARY PRODUCT SUMMARY VDS(V) 60 RDS(on) ( 0.153@VGS= 10V 0.185@VGS= 4.5V ID(A) 2.3 2.1 G S G REF. A B C D E F Millimeter Min

STT3962N General Description

These miniature surface mount MOSFETs utilize High Cell Density process. Low RDS(on) assures minimal power loss and conserves energy, making this device ideal for use in power management circuitry. Typical applications are DC-DC converters, power management in portable and battery-powered products s.

STT3962N Datasheet (430.76 KB)

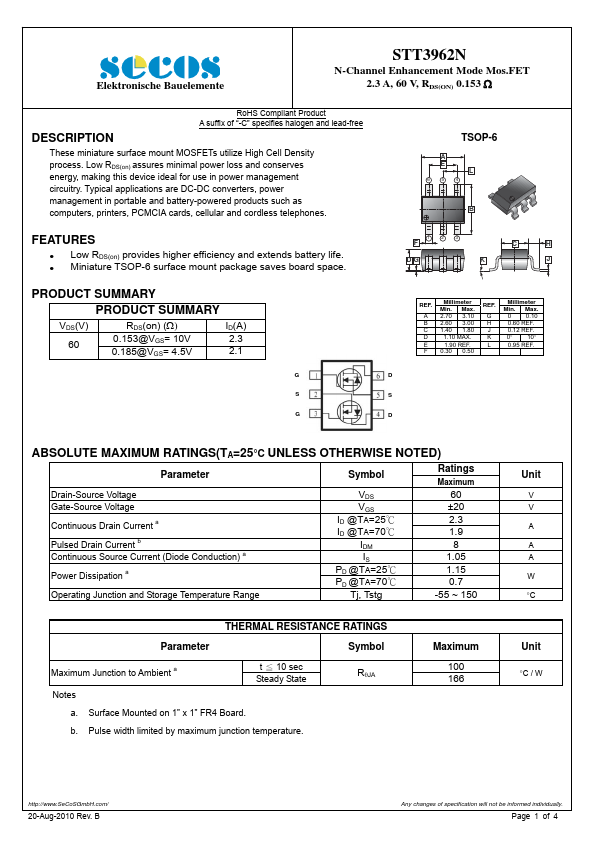

STT3962N Datasheet Preview — Preview of STT3962N PDF

Datasheet Details

Part number:

STT3962N

Manufacturer:

SeCoS

File Size:

430.76 KB

Description:

N-channel mosfet.
Elektronische Bauelemente STT3962N N-Channel Enhancement Mode Mos.FET 2.3 A, 60 V, RDS(ON) 0.153  RoHS Compliant Product A suffix of “-C” specifies.
