IP6505 - 24W Max Synchronous-Rectified Buck Converter

Datasheet Summary

Description

IP6505 is a Synchronous-Rectified Buck Converter and support 10 fast charge output standards, providing solutions for car charger, fast charge adaptor and smart power strip.

Features

  • Synchronized Switch Regulator.
  • Built-in power MOSFET.
  • 48V Input Voltage Surge.
  • Input voltage range: 4.5V~32V.
  • Output voltage range: 3V~12V, Output power: up to 24W.
  • fixed line-compensation.
  • Support CV (Constant Output Voltage) mode & CC(Constant Output Current) mode.
  • Conversion efficiency: up to 97%.
  • Soft start function.
  • Fast charge output.
  • Support BC1.2, Apple, Samsung.
  • Support Qualcomm QC2.0, QC3.0.
  • Support MTK PE+1.1 and MTK PE.

📥 Download Datasheet

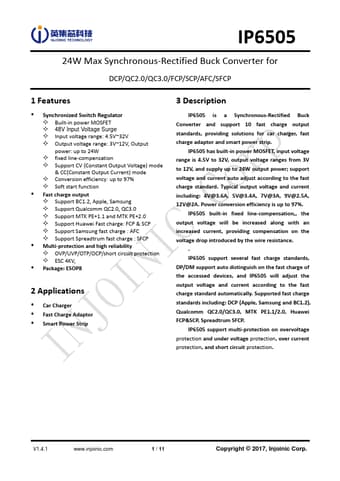

Datasheet preview – IP6505

Datasheet Details

Part number IP6505
Manufacturer Injoinic
File Size 628.23 KB
Description 24W Max Synchronous-Rectified Buck Converter
Datasheet download datasheet IP6505 Datasheet
Additional preview pages of the IP6505 datasheet.

📁 Similar Datasheet

  • IP6505 - SOC IC (ChipSourceTek)
  • IP6520T - buck SOC (ChipSourceTek)
  • IP6525S - Buck SOC (ChipSourceTek)
  • IP6538 - High performance switching power supply secondary synchronous rectifier controller (INPOWER)
  • IP6648 - MOSFET (INPOWER)
  • IP6809B - 7.5W/10W/15W wireless charging transmitter controller (ChipSourceTek)
  • IP6829 - wireless charging transmitter SOC (ChipSourceTek)
  • IP6833 - 5W wireless charging receiver (ChipSourceTek)
Other Datasheets by Injoinic
  • IP6502 - SOC
  • IP6503S - 2.4A/3.1A OUTPUT STEP-DOWN CONVERTER
  • IP6510 - Output 18W Power SOC
  • IP6515 - Dual Ports Output 5V/4.8A Buck Converter
  • IP6518 - Output 45W Power SOC
  • IP6520T - A buck SoC
  • IP6520U - A power management
  • IP6522 - Synchronous Buck Converter

Full PDF Text Transcription

Click to expand full text
IP6505 24W Max Synchronous-Rectified Buck Converter for DCP/QC2.0/QC3.0/FCP/SCP/AFC/SFCP 1 Features  Synchronized Switch Regulator  Built-in power MOSFET  48V Input Voltage Surge  Input voltage range: 4.5V~32V  Output voltage range: 3V~12V, Output power: up to 24W  fixed line-compensation  Support CV (Constant Output Voltage) mode & CC(Constant Output Current) mode  Conversion efficiency: up to 97%  Soft start function  Fast charge output  Support BC1.2, Apple, Samsung  Support Qualcomm QC2.0, QC3.0  Support MTK PE+1.1 and MTK PE+2.
