IP6518 - Output 45W Power SOC

Datasheet Summary

Description

IP6518 is a synchronized switch buck regulator and support 13 fast charge output standards, support Type-C and PD output, providing solutions for car charger, fast charge adaptor and smart power strip.

Features

  • Synchronized Switch Regulator.
  • Built-in power MOSFET.
  • Input voltage range: 10.5V~32V.
  • Output voltage range: 3V~20V, adjust along with fast charge negotiation.
  • Output power: up to 45W (3V@3.6A, 5V@3.4A, 9V@3A, 12V@3A, 15V@2.3A, 20V@2.3A).
  • Output voltage line compensate: 50mV/A.
  • Output CV/CC characteristic: CV.
  • output current lower than preset value; CC.
  • output current higher than preset value.
  • Conversion efficiency: up to 97%.
  • Soft start.

📥 Download Datasheet

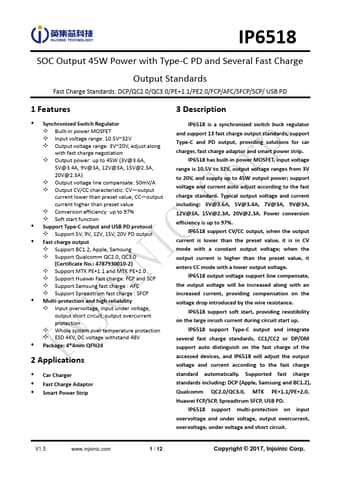

Datasheet preview – IP6518

Datasheet Details

Part number IP6518
Manufacturer Injoinic
File Size 772.97 KB
Description Output 45W Power SOC
Datasheet download datasheet IP6518 Datasheet
Additional preview pages of the IP6518 datasheet.

📁 Similar Datasheet

  • IP6505 - SOC IC (ChipSourceTek)
  • IP6520T - buck SOC (ChipSourceTek)
  • IP6525S - Buck SOC (ChipSourceTek)
  • IP6538 - High performance switching power supply secondary synchronous rectifier controller (INPOWER)
  • IP6648 - MOSFET (INPOWER)
  • IP6809B - 7.5W/10W/15W wireless charging transmitter controller (ChipSourceTek)
  • IP6829 - wireless charging transmitter SOC (ChipSourceTek)
  • IP6833 - 5W wireless charging receiver (ChipSourceTek)
Other Datasheets by Injoinic
  • IP6510 - Output 18W Power SOC
  • IP6515 - Dual Ports Output 5V/4.8A Buck Converter
  • IP6502 - SOC
  • IP6503S - 2.4A/3.1A OUTPUT STEP-DOWN CONVERTER
  • IP6505 - 24W Max Synchronous-Rectified Buck Converter
  • IP6520T - A buck SoC
  • IP6520U - A power management
  • IP6522 - Synchronous Buck Converter

Full PDF Text Transcription

Click to expand full text
IP6518 SOC Output 45W Power with Type-C PD and Several Fast Charge Output Standards Fast Charge Standards: DCP/QC2.0/QC3.0/PE+1.1/PE2.0/FCP/AFC/SFCP/SCP/ USB PD 1 Features  Synchronized Switch Regulator  Built-in power MOSFET  Input voltage range: 10.5V~32V  Output voltage range: 3V~20V, adjust along with fast charge negotiation  Output power: up to 45W (3V@3.6A, 5V@3.4A, 9V@3A, 12V@3A, 15V@2.3A, 20V@2.3A)  Output voltage line compensate: 50mV/A  Output CV/CC characteristic: CV—output current lower than preset value; CC—output current higher than preset value  Conversion efficiency: up to 97%  Soft start function  Support Type-C output and USB PD protocol  Support 5V, 9V, 12V, 15V, 20V PD output  Fast charge output  Support BC1.2, Apple, Samsung  Support Qualcomm QC2.
