IP6510 - Output 18W Power SOC

Datasheet Summary

Description

IP6510 is a synchronized switch buck regulator and support 9 fast charge output standards, support Type-C and PD output, providing solutions for car charger, fast charge adaptor and smart power strip.

Features

  • Synchronized Switch Regulator.
  • Built-in power MOSFET.
  • Input voltage range: 4.5V~32V.
  • Output voltage range: 3V~12V, adjust along with fast charge negotiation.
  • Output power: up to 18W ( 5V@3.1A, 7V/2.4A, 9V@2A, 12V@1.5A).
  • Output voltage line compensate: 50mV/A.
  • Output CV/CC characteristic: CV.
  • output current lower than preset value; CC.
  • output current higher than preset value.
  • Conversion efficiency: up to 97%.
  • Soft start function.
  • Su.

📥 Download Datasheet

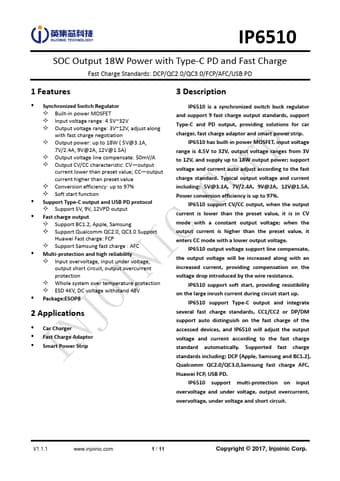

Datasheet preview – IP6510

Datasheet Details

Part number IP6510
Manufacturer Injoinic
File Size 659.99 KB
Description Output 18W Power SOC
Datasheet download datasheet IP6510 Datasheet
