IP6832

10W wireless charging receiver SOC

IP6832 Features

* High-integration wireless power receiving SOC

* Built-in 32-bit MCU

* Built-in 10k Bytes MTP, 1k Bytes RAM

* Built-in multi-channel 12bit SAR ADC

* Support 10W wireless power reception

* Built-in high-efficiency full-bridge synchronous rectifier circuit

* Built-in wirel

IP6832 General Description

IP6832 is a highly integrated wireless charging receiver SOC that supports the WPC Qi standard. The chip integrates a high-efficiency full-bridge synchronous rectification circuit to realize AC-DC conversion. The rectified output voltage, VRECT, is regulated by the internal LDO and outputs a stable .

IP6832 Datasheet (929.64 KB)

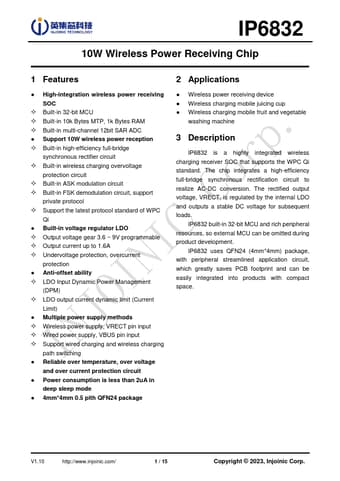

Preview of IP6832 PDF

Datasheet Details

Part number:

IP6832

Manufacturer:

Injoinic

File Size:

929.64 KB

Description:

10w wireless charging receiver soc.
