13611XR Datasheet - Inphi

13-Gbps XOR/XNOR

13611XR Features

* Supports data rates up to 13 Gbps

* Rise and fall times typically 17/12 ps, respectively

* Power dissipation typically 265 mW

* Supports single-ended and differential operation

* Output signal swing 1200 mVpp differential

13611XR General Description

The 13611XR XOR/XNOR is designed to support data rates up to 13 Gbps. All differential data inputs are DC coupled and terminated on chip with 50 Ω resistors to VCC. The differential data outputs are back-terminated on chip with 60 Ω resistors to VCC (50 ohm impedance). For direct-coupled application.

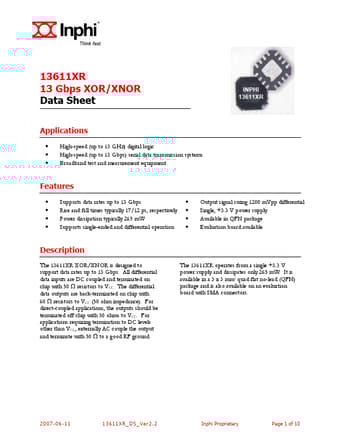

13611XR Datasheet (378.30 KB)
