IL34C86 Datasheet - Integral

IL34C86 - Differential line receiver

IL34C86 Differential line receiver.

.

Microcircuit IL34C86 consists of four differential line receivers and is a microcircuit that meets international standards of data transmission RS-422, RS-423, and it is widely used in data transmission nets, particularly in a unit for local loop of ATS.

Functions implemented This device carries out comparing inputs with low differential signal of 200mV and gives on output full signal with load carrying capacity of ±6mÀ, and also has hysteresis to improve n

IL34C86-Integral.pdf

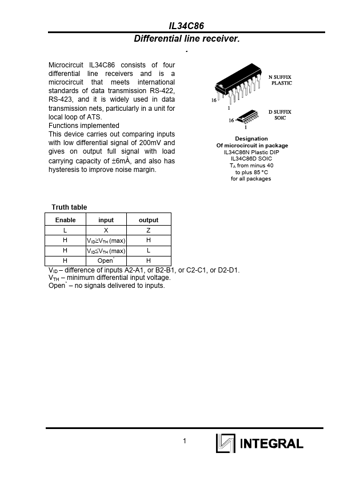

Preview of IL34C86 PDF
IL34C86 Datasheet Preview Page 2 IL34C86 Datasheet Preview Page 3

Datasheet Details

Part number:

IL34C86

Manufacturer:

Integral

File Size:

123.73 KB

Description:

Differential line receiver.
