IL34063A DC-To-DC Converter

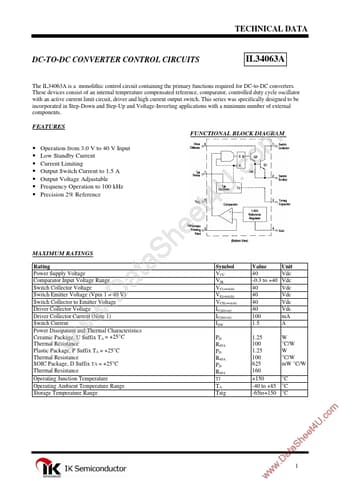

TECHNICAL DATA DC-TO-DC CONVERTER CONTROL CIRCUITS IL34063A The IL34063A is a monolithic control circuit containing the primary functions required for DC-to-DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum.

IL34063A Features

* FUNCTIONAL BLOCK DIAGRAM

* Operation from 3.0 V to 40 V Input Low Standby Current Current Limiting Output Switch Current to 1.5 A Output Voltage Adjustable Frequency Operation to 100 kHz Precision 2% Reference MAXIMUM RATINGS Ratin
