IN80C32N Datasheet - Integral

IN80C32N - CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

IN80C32N/IN80C52N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER The 80C32/80C52 is a high-performance microcontroller fabricated with high-density CMOS technology.

The 80C52 contains a 8k x 8 ROM , a 256 x 8 RAM , 32 I/O lines, three 16-bit counter/timers, a five-source, two-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART, and onchip oscillator and clock circuits.

The device has two software selectable modes of po

IN80C32N Features

* 8032/8052 compatible  8k x 8 ROM (80C52)  ROMless (80C32)  256 x 8 RAM  Three 16-bit counter/timers  Full duplex serial channel  Boolean processor

* Memory addressing capability 64k ROM and 64k RAM

* Power control modes:  Idle mode  Power-down mode

IN80C32N_Integral.pdf

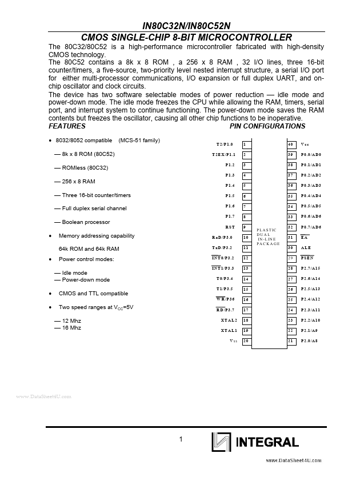

Preview of IN80C32N PDF
IN80C32N Datasheet Preview Page 2

Datasheet Details

Part number:

IN80C32N

Manufacturer:

Integral

File Size:

139.16 KB

Description:

Cmos single-chip 8-bit microcontroller.
