IN80C49N, IN80C39N Datasheet - Integral

IN80C49N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

IN80C39N/IN80C49N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER The 80C39/80C49 is a high-performance microcontroller fabricated with high-density CMOS technology. The 80C49 contains a 2k x 8 ROM , a 128 x 8 RAM , 27 I/O lines, 8-bit counter/timers, a two-source, one level interrupt structure, and on-chip oscillator and clock circuits. The device has two modes of power reduction  idle mode and power-down mode. The idle mode freezes the CPU while allowing the RAM, timer, and interrupt system to continu.

IN80C49N Features

* 8039/8049 compatible  2k x 8 ROM (80C49)  ROMless (80C39)  128 x 8 RAM  8-bit counter/timers

* Memory addressing capability  4k ROM and 4k RAM

* Power control modes:  Idle mode  Power-down mode

* CMOS and TTL compatible Speed range at VCC=5V  8 MHz

IN80C39N_Integral.pdf

This datasheet PDF includes multiple part numbers: IN80C49N, IN80C39N. Please refer to the document for exact specifications by model.

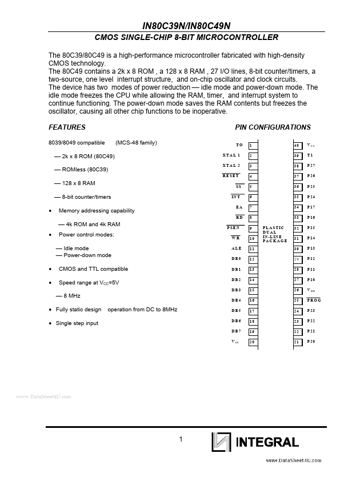

IN80C49N Datasheet Preview Page 2

Datasheet Details

Part number:

IN80C49N, IN80C39N

Manufacturer:

Integral

File Size:

133.84 KB

Description:

Cmos single-chip 8-bit microcontroller.

Note:

This datasheet PDF includes multiple part numbers: IN80C49N, IN80C39N.
Please refer to the document for exact specifications by model.
