IN80C51N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

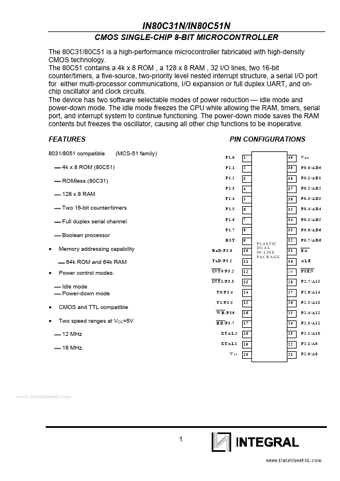

IN80C31N/IN80C51N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER The 80C31/80C51 is a high-performance microcontroller fabricated with high-density CMOS technology. The 80C51 contains a 4k x 8 ROM , a 128 x 8 RAM , 32 I/O lines, two 16-bit counter/timers, a five-source, two-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART, and onchip oscillator and clock circuits. The device has two software selectable modes of powe.

IN80C51N Features

* 8031/8051 compatible  4k x 8 ROM (80C51)  ROMless (80C31)  128 x 8 RAM  Two 16-bit counter/timers  Full duplex serial channel  Boolean processor

* Memory addressing capability  64k ROM and 64k RAM

* Power control modes:  Idle mode  Power-down mode

* CMOS an

IN80C31N_Integral.pdf

IN80C51N Datasheet Preview — This datasheet PDF includes multiple part numbers: IN80C51N, IN80C31N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IN80C51N, IN80C31N

Manufacturer:

Integral

File Size:

138.95 KB

Description:

Cmos single-chip 8-bit microcontroller.

Note:

This datasheet PDF includes multiple part numbers: IN80C51N, IN80C31N.
Please refer to the document for exact specifications by model.
