IZ1325

High-precision Real Time Clock circuit

IZ1325 Features

* Supply voltage, UDD, 1,7 … 5,5 V

* Oscilator operating supply voltage UCLK, 1,15 … 5,5 V

* Operating temperature range -40 to +85 °С Table 1

* Contact pad description Contact pad num- ber 01 02 03 04 05 06 07 08 09 10 11 Symbol GND INTA X1 X2 FOE VDD TEST FOUT

IZ1325 General Description

Contact pad num- ber 01 02 03 04 05 06 07 08 09 10 11 Symbol GND INTA X1 X2 FOE VDD TEST FOUT SCL SDA INTB Description Ground Interrupt output A Quartz resonator input Quartz resonator output Control input Power supply Test terminal 32.768 kHz clock output I2C bus clock input I2C bus input-output.

IZ1325 Datasheet (158.30 KB)

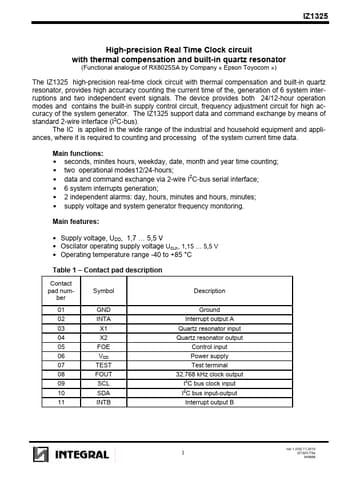

Preview of IZ1325 PDF

Datasheet Details

Part number:

IZ1325

Manufacturer:

Integral

File Size:

158.30 KB

Description:

High-precision real time clock circuit.
IZ1325 High-precision Real Time Clock circuit with thermal compensation and built-in quartz resonator (Functional analogue of RX8025SA by Company « E.
